Masks (.shaders.masks)

brick_cutter

class infinigen2.shaders.masks.brick_cutter.BrickCutterResult(...)

Bases: NamedTuple

Fields: mask: ProcNode[float]; vector: ProcNode[Vector]; distance_from_edge: ProcNode[float]; brick_id: ProcNode[Vector]; random: ProcNode[Color]; height: ProcNode[float]; height_offset: ProcNode[float]

infinigen2.shaders.masks.brick_cutter.brick_cutter(...) → BrickCutterResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• brick_width (pf.ProcNode[float] | float) -- (default: 0.3)

• brick_height (pf.ProcNode[float] | float) -- (default: 0.1)

• brick_scaling (pf.ProcNode[float] | float) -- (default: 1.0)

• shift (pf.ProcNode[float] | float) -- (default: 0.5)

• irregularity (pf.ProcNode[float] | float) -- (default: 0.0)

• gab (pf.ProcNode[float] | float) -- (default: 0.07)

• round_corner (pf.ProcNode[float] | float) -- (default: 0.0)

• warp_strength (pf.ProcNode[float] | float) -- (default: 0.0)

• warp_size (pf.ProcNode[float] | float) -- (default: 1.0)

• brick_extrusion (pf.ProcNode[float] | float) -- (default: 0.5)

• brick_extrusion_variation (pf.ProcNode[float] | float) -- (default: 0.0)

• brick_bevel (pf.ProcNode[float] | float) -- (default: 0.14)

• brick_bevel_concavity (pf.ProcNode[float] | float) -- (default: 0.5)

• grout_extrusion (pf.ProcNode[float] | float) -- (default: 0.002)

• grout_bevel (pf.ProcNode[float] | float) -- (default: 1.0)

• grout_bevel_concavity (pf.ProcNode[float] | float) -- (default: 0.5)

• seed (pf.ProcNode[float] | float) -- (default: 0.0)

• random_coord (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (1.0, 1.0, 1.0))

• masked_coord (pf.ProcNode[float] | float) -- (default: 1.0)

infinigen2.shaders.masks.brick_cutter.brick_cutter_rand(...) → BrickCutterResult

Example renders

infinigen2 brick_cutter_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 brick_cutter_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

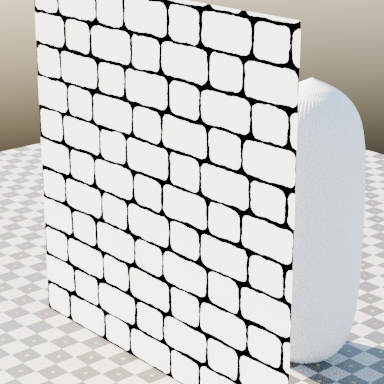

infinigen2 brick_cutter_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

infinigen2 brick_cutter_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

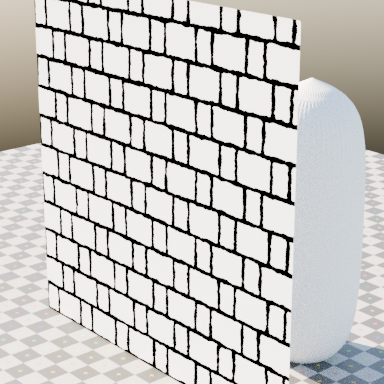

infinigen2 brick_cutter_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

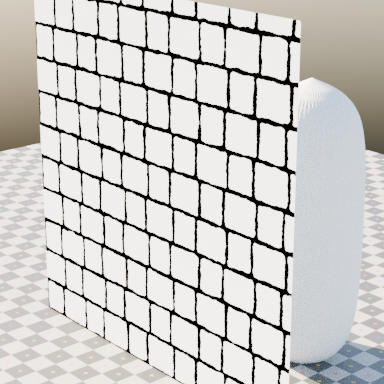

infinigen2 brick_cutter_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• irregularity (pf.ProcNode[float] | float | None) -- (default: None)

• warp_strength (pf.ProcNode[float] | float | None) -- (default: None)

• gab (pf.ProcNode[float] | float | None) -- (default: None)

• brick_extrusion (pf.ProcNode[float] | float | None) -- (default: None)

• brick_dimensions (pf.ProcNode[pf.Vector] | pf.Vector | None) -- (default: None)

• grout_extrusion (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.brick_cutter.brick_dimensions_rand(...) → pf.ProcNode[pf.Vector]

Dimensions of typical red/gray bricks from an industrial factory (as opposed to a large quarried stone block)

Parameters:

• rng (Generator)

• brick_width_mean (pf.ProcNode[float] | float) -- (default: 0.3)

• brick_width_std (pf.ProcNode[float] | float) -- (default: 0.1)

• brick_aspect_mean (pf.ProcNode[float] | float) -- (default: 0.4)

• brick_aspect_std (pf.ProcNode[float] | float) -- (default: 0.1)

infinigen2.shaders.masks.brick_cutter.brick_shift_rand(rng) → pf.ProcNode[float] | float

Parameters:

rng (Generator)

brick_selector

class infinigen2.shaders.masks.brick_selector.BrickSelectorResult(selection, inverted_selection)

Bases: NamedTuple

Fields: selection: ProcNode[float]; inverted_selection: ProcNode[float]

infinigen2.shaders.masks.brick_selector.brick_selector(...) → BrickSelectorResult

Parameters:

• brick_id (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• skip_x (pf.ProcNode[float] | float) -- (default: 0.5)

• offset_x (pf.ProcNode[float] | float) -- (default: 0.0)

• skip_y (pf.ProcNode[float] | float) -- (default: 0.5)

• offset_y (pf.ProcNode[float] | float) -- (default: 0.0)

• shift (pf.ProcNode[float] | float) -- (default: 0.5)

• bias (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.brick_selector.brick_selector_rand(rng, brick_id)

Parameters:

• rng (Generator)

• brick_id (pf.ProcNode[pf.Vector] | pf.Vector)

cracks

class infinigen2.shaders.masks.cracks.CracksMaskResult(mask)

Bases: NamedTuple

Fields: mask: ProcNode[float]

infinigen2.shaders.masks.cracks.cracks_mask(...) → pf.ProcNode[float]

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• displacement_a (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• displacement_b (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• height_threshold (pf.ProcNode[float] | float) -- (default: 0.0)

• blend_distance (pf.ProcNode[float] | float) -- (default: 0.01)

• random_seed (pf.ProcNode[float] | float) -- (default: 0.0)

• warp_size (pf.ProcNode[float] | float) -- (default: 0.05)

• warp_strength (pf.ProcNode[float] | float) -- (default: 1.3)

• warp_detail (pf.ProcNode[float] | float) -- (default: 4.0)

• group_size (pf.ProcNode[float] | float) -- (default: 1.0)

• group_detail (pf.ProcNode[float] | float) -- (default: 4.0)

• group_spread (pf.ProcNode[float] | float) -- (default: 1.0)

• crack_spread_x (pf.ProcNode[float] | float) -- (default: 0.142)

• crack_spread_y (pf.ProcNode[float] | float) -- (default: 0.2841)

• crack_size (pf.ProcNode[float] | float) -- (default: 0.1)

• crack_detail (pf.ProcNode[float] | float) -- (default: 3.0)

• hole_spread (pf.ProcNode[float] | float) -- (default: 0.5)

• hole_size (pf.ProcNode[float] | float) -- (default: 0.1)

• hole_detail (pf.ProcNode[float] | float) -- (default: 4.0)

infinigen2.shaders.masks.cracks.cracks_rand(...) → CracksMaskResult

Parameters:

• height_threshold (float - if specified, cracks will only occur for areas with greater displacement than this threshold) -- e.g. bricks use this to only have wear/tear on the raised parts

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• displacement_a (pf.ProcNode[pf.Vector] | pf.Vector | None)

• displacement_b (pf.ProcNode[pf.Vector] | pf.Vector | None)

Example renders

infinigen2 cracks_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

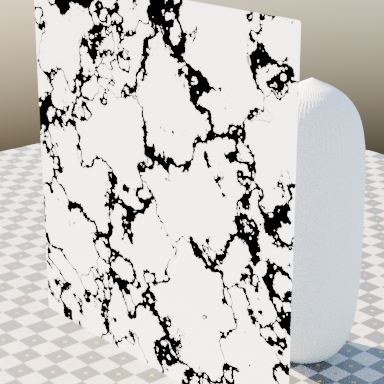

infinigen2 cracks_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

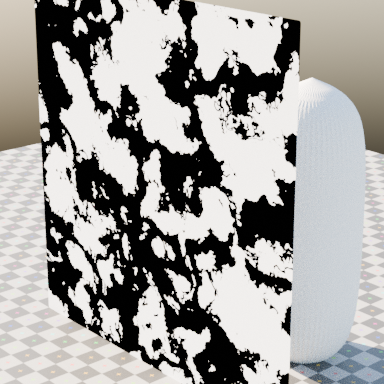

infinigen2 cracks_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

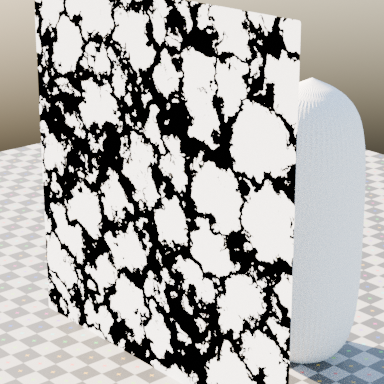

infinigen2 cracks_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 cracks_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 cracks_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Presets

infinigen2 cracks_dense_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 cracks_flakes_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 cracks_worn_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• displacement_a (pf.ProcNode[pf.Vector] | pf.Vector | None) -- (default: None)

• displacement_b (pf.ProcNode[pf.Vector] | pf.Vector | None) -- (default: None)

• height_threshold (pf.ProcNode[float] | float)

infinigen2.shaders.masks.cracks.flake_mask(...) → pf.ProcNode[float]

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• random_seed (pf.ProcNode[float] | float) -- (default: 0.0)

• flake_size (pf.ProcNode[float] | float) -- (default: 1.0)

• flake_spread (pf.ProcNode[float] | float) -- (default: 0.4)

• edge_size (pf.ProcNode[float] | float) -- (default: 0.1)

• edge_strength (pf.ProcNode[float] | float) -- (default: 0.2)

infinigen2.shaders.masks.cracks.flake_mask_rand(

rng,

vector,

flake_size=None,

) → CracksMaskResult

Example renders

infinigen2 flake_mask_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 flake_mask_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 flake_mask_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

infinigen2 flake_mask_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 flake_mask_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 flake_mask_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• flake_size (pf.ProcNode[float] | float | None) -- (default: None)

edgewear

class infinigen2.shaders.masks.edgewear.EdgewearMaskResult(mask)

Bases: NamedTuple

Fields: mask: ProcNode[float]

infinigen2.shaders.masks.edgewear.edgewear_mask(...)

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• displacement_a (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• displacement_b (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• height_threshold (pf.ProcNode[float] | float) -- (default: 0.0)

• scratch_radius (pf.ProcNode[float] | float) -- (default: 0.01)

• scratch_mask_randomness (pf.ProcNode[float] | float) -- (default: 0.5)

• scratch_density (pf.ProcNode[float] | float) -- (default: 5.0)

• scratch_opacity (pf.ProcNode[float] | float) -- (default: 0.2)

infinigen2.shaders.masks.edgewear.edgewear_rand(...) → EdgewearMaskResult

Example renders

infinigen2 edgewear_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

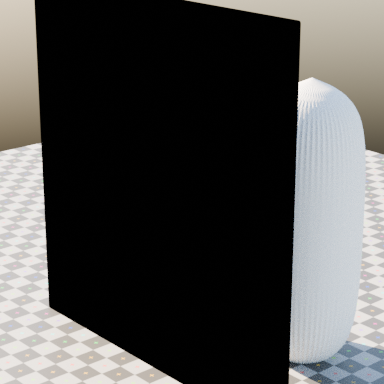

infinigen2 edgewear_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 edgewear_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

infinigen2 edgewear_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 edgewear_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 edgewear_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• displacement_a (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• displacement_b (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• height_threshold (pf.ProcNode[float] | float) -- (default: -1.0)

graphicdesign

infinigen2.shaders.masks.graphicdesign.art(...) → pf.ProcNode[pf.Color]

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• image (Image)

• noise_mix (pf.ProcNode[float] | float) -- (default: 0.5)

• uv_mix (pf.ProcNode[float] | float) -- (default: 1.0)

infinigen2.shaders.masks.graphicdesign.art_rand(rng, vector, image=None) → pf.ProcNode[pf.Color]

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• image (Image | None) -- (default: None)

scratches

class infinigen2.shaders.masks.scratches.ScratchesLinearResult(...)

Bases: NamedTuple

Fields: vector: ProcNode[Vector] | Vector; shader: ProcNode[~Shader]; displacement: ProcNode[Vector]; scratch_shader: ProcNode[~Shader] | ~Shader; scratch_texture: ProcNode[float]

class infinigen2.shaders.masks.scratches.ScratchesMaskResult(mask)

Bases: NamedTuple

Fields: mask: ProcNode[float]

class infinigen2.shaders.masks.scratches.ScratchesRandomResult(...)

Bases: NamedTuple

Fields: vector: ProcNode[Vector] | Vector; shader: ProcNode[~Shader]; displacement: ProcNode[Vector]; scratch_shader: ProcNode[~Shader] | ~Shader; scratch_texture: ProcNode[float]

infinigen2.shaders.masks.scratches.scratches_layer_rand(...)

One scratch layer: pick the linear or random pattern and sample its parameters fresh over the given base shader/displacement.

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• base_shader (pf.ProcNode[Shader] | Shader)

• base_displacement (pf.ProcNode[pf.Vector] | pf.Vector)

• scratch_shader (pf.ProcNode[Shader] | Shader)

• scale (float | None) -- (default: None)

infinigen2.shaders.masks.scratches.scratches_linear(...) → ScratchesLinearResult

Parameters:

• base_shader (pf.ProcNode[Shader] | Shader)

• scratch_shader (pf.ProcNode[Shader] | Shader)

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• base_displacement (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• use_scratch_shader (pf.ProcNode[float] | float) -- (default: 0.0)

• random_seed (pf.ProcNode[float] | float) -- (default: 0.0)

• scratch_rotation (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• scratch_spacing (pf.ProcNode[float] | float) -- (default: 0.1)

• scratch_spread (pf.ProcNode[float] | float) -- (default: 0.25)

• scratch_thickness (pf.ProcNode[float] | float) -- (default: 0.001)

• thickness_variation (pf.ProcNode[float] | float) -- (default: 0.0)

• scratch_depth (pf.ProcNode[float] | float) -- (default: 0.001)

• noise_size (pf.ProcNode[float] | float) -- (default: 1.0)

• distortion_size (pf.ProcNode[float] | float) -- (default: 1.0)

• distortion_stretch (pf.ProcNode[float] | float) -- (default: 3.0)

• distortion_strength (pf.ProcNode[float] | float) -- (default: 0.1)

• distortion_detail (pf.ProcNode[float] | float) -- (default: 4.0)

infinigen2.shaders.masks.scratches.scratches_linear_rand(...) → ScratchesLinearResult

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• base_shader (pf.ProcNode[Shader] | Shader)

• base_displacement (pf.ProcNode[pf.Vector] | pf.Vector)

• scratch_shader (pf.ProcNode[Shader] | Shader)

• scale (float | None) -- (default: None)

infinigen2.shaders.masks.scratches.scratches_mask_rand(

rng,

vector,

) → ScratchesMaskResult

Raw scratch texture as a 0-1 mask: stack 1-3 independently sampled linear/random layers and keep their max.

Example renders

infinigen2 scratches_mask_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 scratches_mask_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

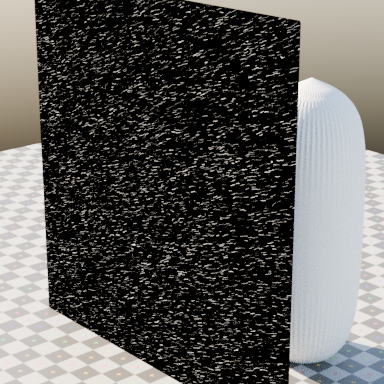

infinigen2 scratches_mask_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

infinigen2 scratches_mask_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 scratches_mask_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 scratches_mask_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Presets

infinigen2 scratches_brushed_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 scratches_deep_dirty_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 scratches_dense_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 scratches_light_varnish_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 scratches_shallow_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

infinigen2.shaders.masks.scratches.scratches_random(...) → ScratchesRandomResult

Parameters:

• base_shader (pf.ProcNode[Shader] | Shader)

• scratch_shader (pf.ProcNode[Shader] | Shader)

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• base_displacement (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• use_scratch_shader (pf.ProcNode[float] | float) -- (default: 0.0)

• random_seed (pf.ProcNode[float] | float) -- (default: 0.0)

• scratch_rotation (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• scratch_spacing (pf.ProcNode[float] | float) -- (default: 0.1)

• scratch_thickness (pf.ProcNode[float] | float) -- (default: 0.001)

• scratch_depth (pf.ProcNode[float] | float) -- (default: 0.001)

• distortion_size (pf.ProcNode[float] | float) -- (default: 0.5)

• distortion_strength (pf.ProcNode[float] | float) -- (default: 0.5)

• distortion_detail (pf.ProcNode[float] | float) -- (default: 2.0)

infinigen2.shaders.masks.scratches.scratches_random_rand(...) → ScratchesRandomResult

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• base_shader (pf.ProcNode[Shader] | Shader)

• base_displacement (pf.ProcNode[pf.Vector] | pf.Vector)

• scratch_shader (pf.ProcNode[Shader] | Shader)

• scale (float | None) -- (default: None)

splats

class infinigen2.shaders.masks.splats.SplatsMaskResult(mask)

Bases: NamedTuple

Fields: mask: ProcNode[float]

infinigen2.shaders.masks.splats.metal_base_material(vector)

Parameters:

vector (pf.ProcNode[pf.Vector] | pf.Vector)

infinigen2.shaders.masks.splats.splat_dots(...) → pf.ProcNode[float]

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• size (pf.ProcNode[float] | float)

• detail (pf.ProcNode[float] | float)

• spread (pf.ProcNode[float] | float)

• smoothness (pf.ProcNode[float] | float)

• distortion_size (pf.ProcNode[float] | float)

• distortion_strength (pf.ProcNode[float] | float)

• distortion_detail (pf.ProcNode[float] | float)

• opacity (pf.ProcNode[float] | float)

• opacity_variation (pf.ProcNode[float] | float)

• seed (pf.ProcNode[float] | float)

• noise_settings_use_noise (pf.ProcNode[float] | float)

• noise_settings_noise_size (pf.ProcNode[float] | float)

• noise_settings_noise_detail (pf.ProcNode[float] | float)

• border_settings_border_thickness (pf.ProcNode[float] | float)

• border_settings_border_opacity (pf.ProcNode[float] | float)

infinigen2.shaders.masks.splats.splat_dots_rand(...)

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• spread (pf.ProcNode[float] | float | None) -- (default: None)

• opacity (pf.ProcNode[float] | float | None) -- (default: None)

• size (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.splats.splats_base_material(vector)

Parameters:

vector (pf.ProcNode[pf.Vector] | pf.Vector)

infinigen2.shaders.masks.splats.splats_cookware(vector)

Parameters:

vector (pf.ProcNode[pf.Vector] | pf.Vector)

infinigen2.shaders.masks.splats.splats_mask_rand(...) → SplatsMaskResult

Example renders

infinigen2 splats_mask_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 splats_mask_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 splats_mask_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

infinigen2 splats_mask_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 splats_mask_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 splats_mask_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Presets

infinigen2 splats_cookware_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 splats_metal_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 splats_spots_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

infinigen2 splats_streaks_mask_preset material_cube render_cycles --seed 0 --passes rgb --displacement_mode DISPLACEMENT -r 192 192 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• size (pf.ProcNode[float] | float | None) -- (default: None)

• allow_gradient (bool) -- (default: False)

• gradient_fac (pf.ProcNode[float] | float | None) -- (default: None)

• gradient_start (pf.ProcNode[float] | float | None) -- (default: None)

• gradient_end (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.splats.splats_metal_gradient(vector)

Parameters:

vector (pf.ProcNode[pf.Vector] | pf.Vector)

infinigen2.shaders.masks.splats.splats_spots(vector)

Parameters:

vector (pf.ProcNode[pf.Vector] | pf.Vector)

infinigen2.shaders.masks.splats.splats_streaks(vector)

Parameters:

vector (pf.ProcNode[pf.Vector] | pf.Vector)

infinigen2.shaders.masks.splats.splats_streaks_rand(rng, vector, size=None) → pf.ProcNode[float]

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• size (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.splats.streaks(...) → pf.ProcNode[float]

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• size (pf.ProcNode[float] | float)

• spread (pf.ProcNode[float] | float)

• smoothness (pf.ProcNode[float] | float)

• vertical_length (pf.ProcNode[float] | float)

• vertical_spacing (pf.ProcNode[float] | float)

• distortion_size (pf.ProcNode[float] | float)

• distortion_strength (pf.ProcNode[float] | float)

• distortion_detail (pf.ProcNode[float] | float)

• opacity (pf.ProcNode[float] | float)

• rotation (pf.ProcNode[pf.Vector] | pf.Vector)

• seed (pf.ProcNode[float] | float)

• noise_settings_use_noise (pf.ProcNode[float] | float)

• noise_settings_noise_size (pf.ProcNode[float] | float)

• noise_settings_noise_detail (pf.ProcNode[float] | float)

• border_settings_thickness (pf.ProcNode[float] | float)

• border_settings_opacity (pf.ProcNode[float] | float)

infinigen2.shaders.masks.splats.uv_gradient_rand(...) → pf.ProcNode[float]

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

• gradient_fac (pf.ProcNode[float] | float | None) -- (default: None)

• gradient_start (pf.ProcNode[float] | float | None) -- (default: None)

• gradient_end (pf.ProcNode[float] | float | None) -- (default: None)

tile_shapes

class infinigen2.shaders.masks.tile_shapes.DiamondSingle002Result(...)

Bases: NamedTuple

Fields: uv: ProcNode[Vector]; color: ProcNode[Color]; value: ProcNode[float]; cell_center_pos: ProcNode[Vector]; cell_center_idx: ProcNode[Vector]; vector: ProcNode[Vector]; distance_from_edge: ProcNode[float]

class infinigen2.shaders.masks.tile_shapes.HalfShellResult(...)

Bases: NamedTuple

Fields: result: ProcNode[Color]; color: ProcNode[Color]; even: ProcNode[float]; cell_center_pos: ProcNode[Vector]; cell_center_idx: ProcNode[Vector]; vector: ProcNode[Vector]; distance_from_edge: ProcNode[float]

class infinigen2.shaders.masks.tile_shapes.HexSingleResult(...)

Bases: NamedTuple

Fields: uv: ProcNode[Vector]; color: ProcNode[Color]; value: ProcNode[float]; cell_center_pos: ProcNode[Vector]; cell_center_idx: ProcNode[Vector]; vector: ProcNode[Vector]; distance_from_edge: ProcNode[float]

class infinigen2.shaders.masks.tile_shapes.MoonSingleResult(...)

Bases: NamedTuple

Fields: result: ProcNode[Color]; color: ProcNode[Color]; cell_center_pos: ProcNode[Vector]; cell_center_idx: ProcNode[Vector]; vector: ProcNode[Vector]; distance_from_edge: ProcNode[float]

class infinigen2.shaders.masks.tile_shapes.StarSingleResult(...)

Bases: NamedTuple

Fields: result: ProcNode[Color]; color: ProcNode[Color]; cell_center_pos: ProcNode[Vector]; cell_center_idx: ProcNode[Vector]; vector: ProcNode[Vector]; distance_from_edge: ProcNode[float]

class infinigen2.shaders.masks.tile_shapes.TileShapeResult(...)

Bases: NamedTuple

Fields: mask: ProcNode[Color]; tile_color: ProcNode[Color]; tile_type_1: ProcNode[float]; tile_type_2: ProcNode[float]; cell_center_pos: ProcNode[Vector]; cell_center_idx: ProcNode[Vector]; vector: ProcNode[Vector]; distance_from_edge: ProcNode[float]

class infinigen2.shaders.masks.tile_shapes.TriangleSingleResult(...)

Bases: NamedTuple

Fields: uv: ProcNode[Vector]; color: ProcNode[Color]; value: ProcNode[float]; cell_center_pos: ProcNode[Vector]; cell_center_idx: ProcNode[Vector]; vector: ProcNode[Vector]; distance_from_edge: ProcNode[float]

infinigen2.shaders.masks.tile_shapes.basket_weave(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 0.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 0.0)

• border (pf.ProcNode[float] | float) -- (default: 0.0)

• flatness (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.tile_shapes.basket_weave_rand(...) → TileShapeResult

Example renders

infinigen2 basket_weave_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

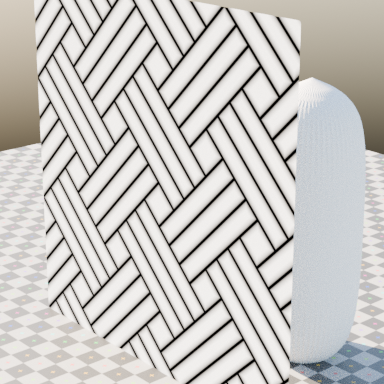

infinigen2 basket_weave_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 basket_weave_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

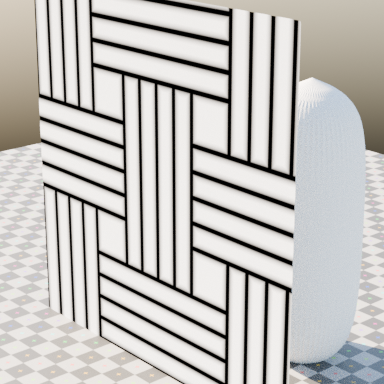

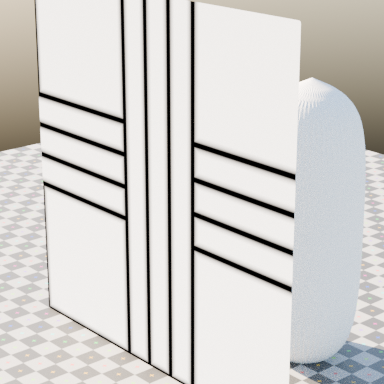

infinigen2 basket_weave_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 basket_weave_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 basket_weave_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.brick(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 0.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 0.0)

• border (pf.ProcNode[float] | float) -- (default: 0.0)

• flatness (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.tile_shapes.brick_rand(...) → TileShapeResult

Example renders

infinigen2 brick_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

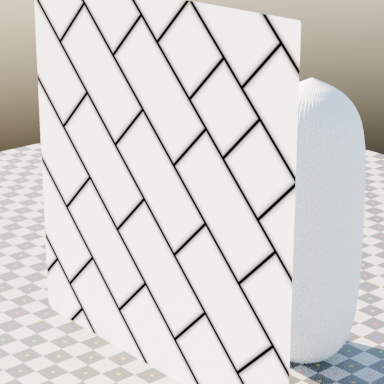

infinigen2 brick_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 brick_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

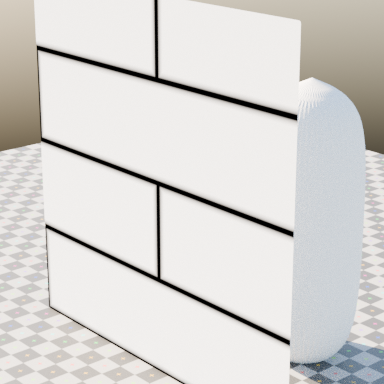

infinigen2 brick_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

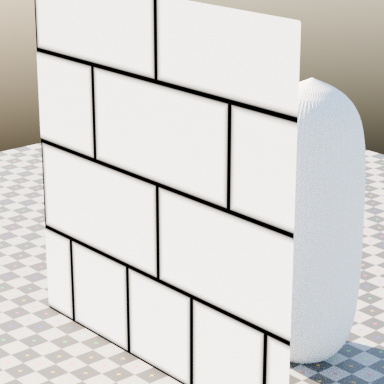

infinigen2 brick_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 brick_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.chevron(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 5.0)

• border (pf.ProcNode[float] | float) -- (default: 0.1)

• flatness (pf.ProcNode[float] | float) -- (default: 0.9)

infinigen2.shaders.masks.tile_shapes.chevron_rand(...) → TileShapeResult

Example renders

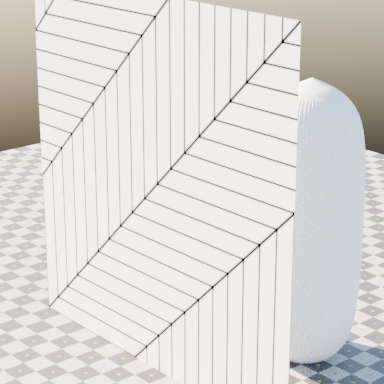

infinigen2 chevron_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 chevron_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 chevron_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

infinigen2 chevron_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 chevron_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

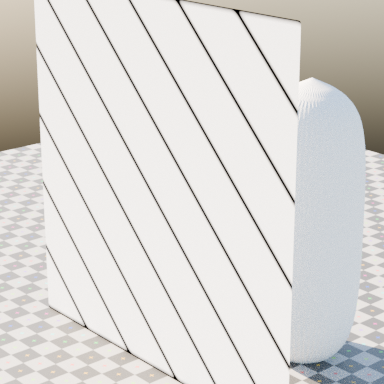

infinigen2 chevron_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.diamond(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 5.0)

• border (pf.ProcNode[float] | float) -- (default: 0.1)

• flatness (pf.ProcNode[float] | float) -- (default: 0.9)

infinigen2.shaders.masks.tile_shapes.diamond_rand(...) → TileShapeResult

Example renders

infinigen2 diamond_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 diamond_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 diamond_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

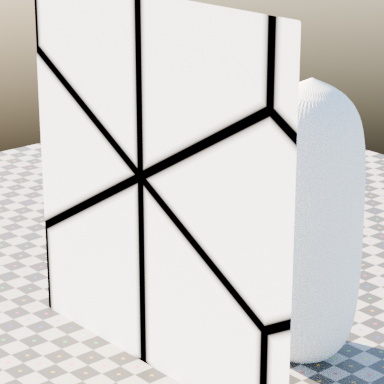

infinigen2 diamond_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 diamond_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

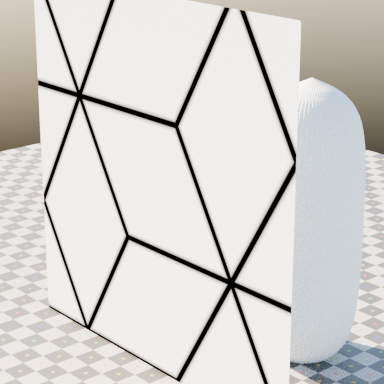

infinigen2 diamond_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.diamond_single(

vector=(0.0, 0.0, 0.0),

width=0.0,

) → DiamondSingle002Result

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• width (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.tile_shapes.half_shell(...) → HalfShellResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• radius (pf.ProcNode[float] | float) -- (default: 0.0)

• edge (pf.ProcNode[float] | float) -- (default: 0.0)

• d_ness_3 (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.tile_shapes.herringbone(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 5.0)

• border (pf.ProcNode[float] | float) -- (default: 0.1)

• flatness (pf.ProcNode[float] | float) -- (default: 0.9)

infinigen2.shaders.masks.tile_shapes.herringbone_rand(...) → TileShapeResult

Example renders

infinigen2 herringbone_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 herringbone_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

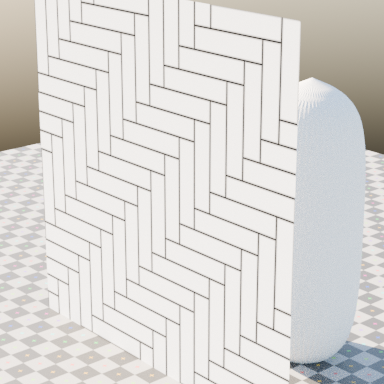

infinigen2 herringbone_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

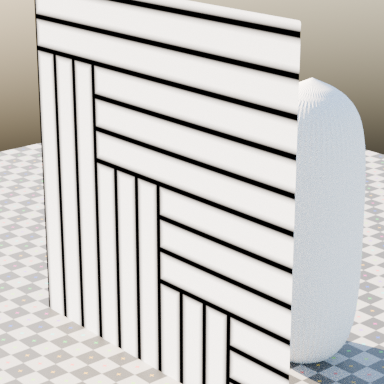

infinigen2 herringbone_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 herringbone_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

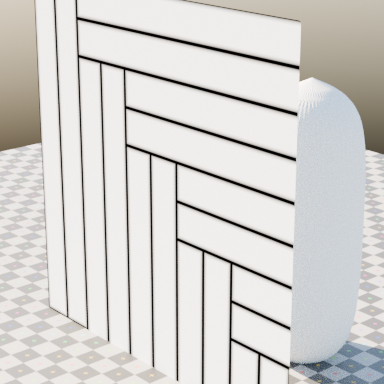

infinigen2 herringbone_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.hex_single(

vector=(0.0, 0.0, 0.0),

size=0.0,

) → HexSingleResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• size (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.tile_shapes.hexagon(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 5.0)

• border (pf.ProcNode[float] | float) -- (default: 0.1)

• flatness (pf.ProcNode[float] | float) -- (default: 0.9)

infinigen2.shaders.masks.tile_shapes.hexagon_rand(...) → TileShapeResult

Example renders

infinigen2 hexagon_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 hexagon_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 hexagon_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

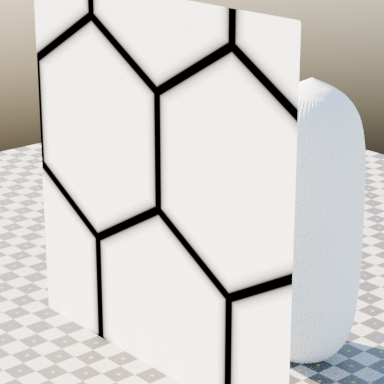

infinigen2 hexagon_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

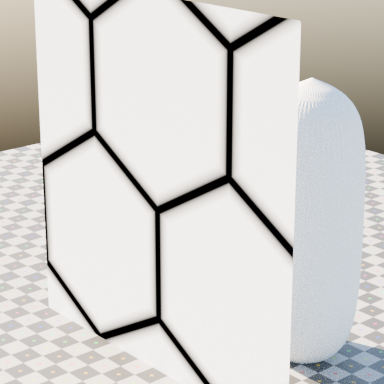

infinigen2 hexagon_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 hexagon_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.moon_single(...) → MoonSingleResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• radius (pf.ProcNode[float] | float) -- (default: 0.0)

• edge (pf.ProcNode[float] | float) -- (default: 0.0)

• d_ness_3 (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.tile_shapes.shell(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 5.0)

• border (pf.ProcNode[float] | float) -- (default: 0.1)

• flatness (pf.ProcNode[float] | float) -- (default: 0.9)

infinigen2.shaders.masks.tile_shapes.shell_rand(...) → TileShapeResult

Example renders

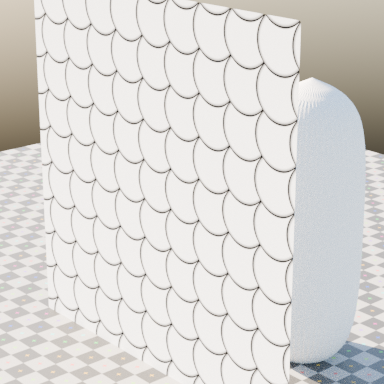

infinigen2 shell_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

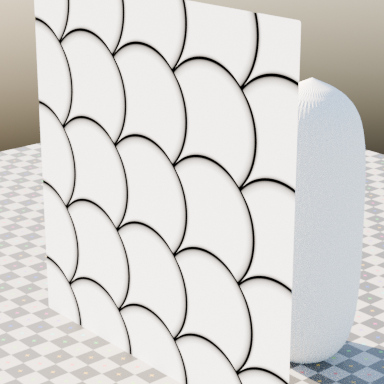

infinigen2 shell_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 shell_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

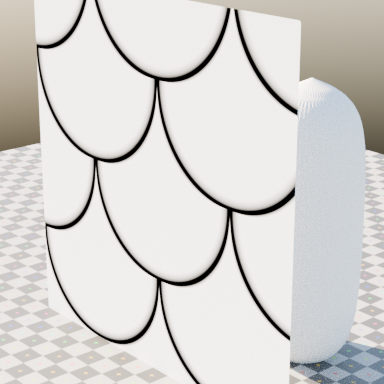

infinigen2 shell_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

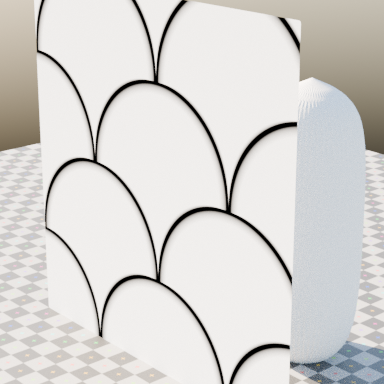

infinigen2 shell_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

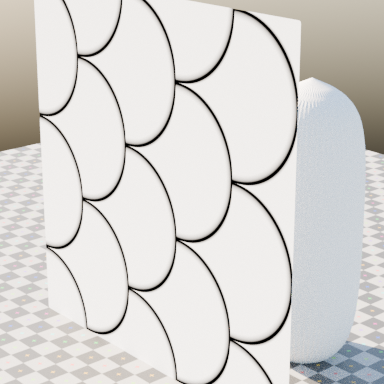

infinigen2 shell_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.spanish_bound(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 5.0)

• border (pf.ProcNode[float] | float) -- (default: 0.1)

• flatness (pf.ProcNode[float] | float) -- (default: 0.9)

infinigen2.shaders.masks.tile_shapes.spanish_bound_rand(...) → TileShapeResult

Example renders

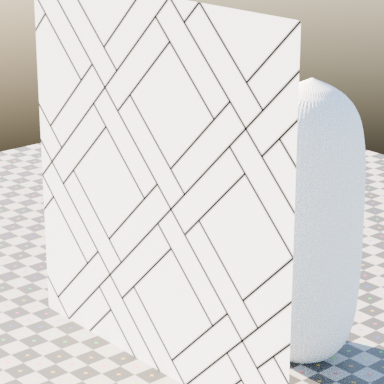

infinigen2 spanish_bound_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

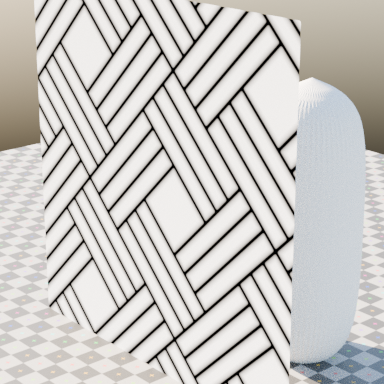

infinigen2 spanish_bound_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 spanish_bound_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

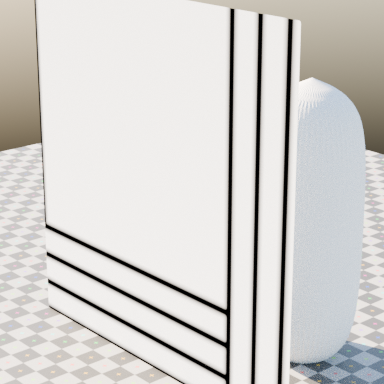

infinigen2 spanish_bound_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 spanish_bound_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 spanish_bound_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.square(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 0.0)

• border (pf.ProcNode[float] | float) -- (default: 0.0)

• flatness (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.tile_shapes.square_rand(...) → TileShapeResult

Example renders

infinigen2 square_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 square_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 square_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

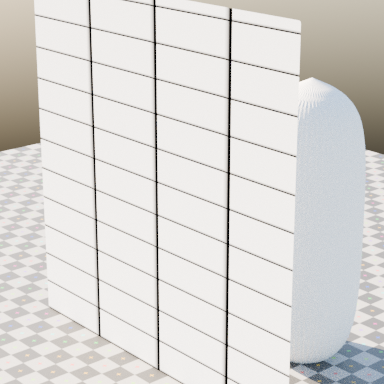

infinigen2 square_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 square_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

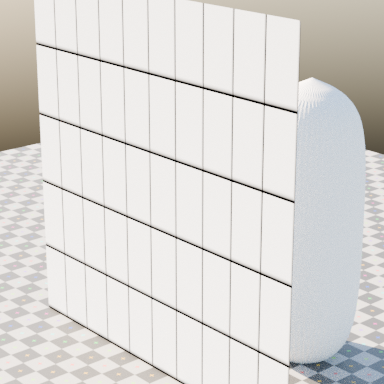

infinigen2 square_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.star(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 5.0)

• border (pf.ProcNode[float] | float) -- (default: 0.1)

• flatness (pf.ProcNode[float] | float) -- (default: 0.9)

infinigen2.shaders.masks.tile_shapes.star_rand(...) → TileShapeResult

Example renders

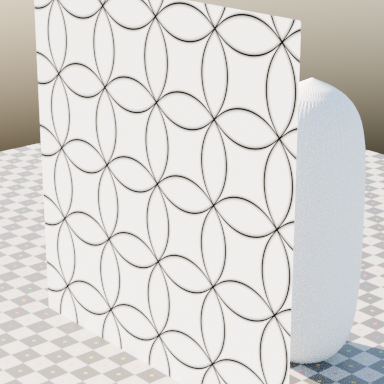

infinigen2 star_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

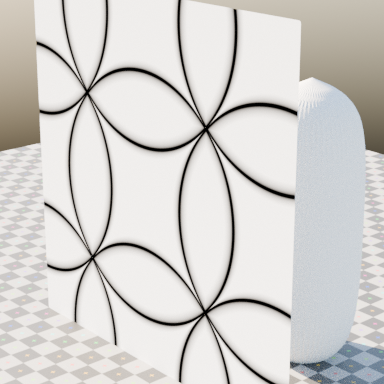

infinigen2 star_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 star_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

infinigen2 star_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

infinigen2 star_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 star_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.star_single(...) → StarSingleResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• radius (pf.ProcNode[float] | float) -- (default: 0.0)

• edge (pf.ProcNode[float] | float) -- (default: 0.0)

• d_ness_3 (pf.ProcNode[float] | float) -- (default: 0.0)

infinigen2.shaders.masks.tile_shapes.tile_coord_transform_rand(...) → pf.ProcNode[pf.Vector]

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• rotation_deg (pf.ProcNode[float] | float | None) -- (default: None)

• scale (pf.ProcNode[float] | float | None) -- (default: None)

• flip (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.tile_mask_rand(...) → TileShapeResult

Example renders

infinigen2 tile_mask_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

infinigen2 tile_mask_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 tile_mask_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

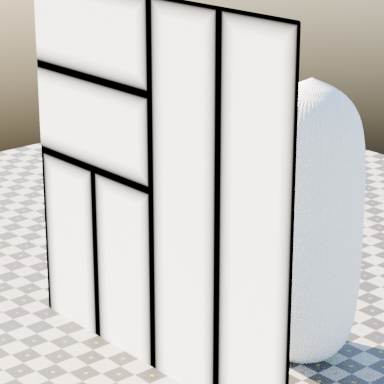

infinigen2 tile_mask_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

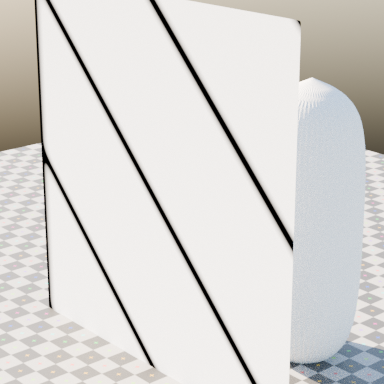

infinigen2 tile_mask_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

infinigen2 tile_mask_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector])

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.triangle(...) → TileShapeResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• subtiles_number (pf.ProcNode[float] | float) -- (default: 1.0)

• aspect_ratio (pf.ProcNode[float] | float) -- (default: 5.0)

• border (pf.ProcNode[float] | float) -- (default: 0.1)

• flatness (pf.ProcNode[float] | float) -- (default: 0.9)

infinigen2.shaders.masks.tile_shapes.triangle_rand(...) → TileShapeResult

Example renders

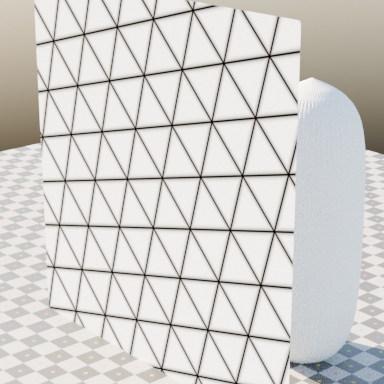

infinigen2 triangle_rand material_plane_uv render_cycles --seed 0 --passes rgb -r 384 384 -s 128 📋

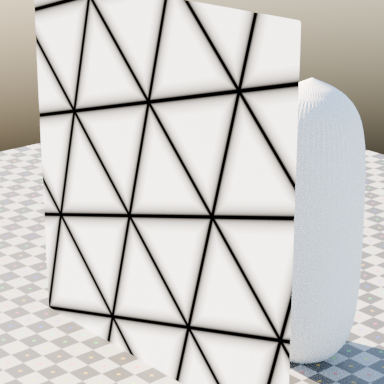

infinigen2 triangle_rand material_plane_uv render_cycles --seed 1 --passes rgb -r 384 384 -s 128 📋

infinigen2 triangle_rand material_plane_uv render_cycles --seed 2 --passes rgb -r 384 384 -s 128 📋

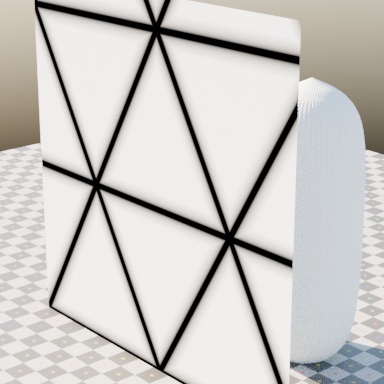

infinigen2 triangle_rand material_plane_uv render_cycles --seed 3 --passes rgb -r 384 384 -s 128 📋

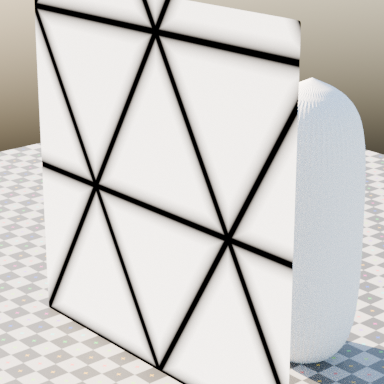

infinigen2 triangle_rand material_plane_uv render_cycles --seed 4 --passes rgb -r 384 384 -s 128 📋

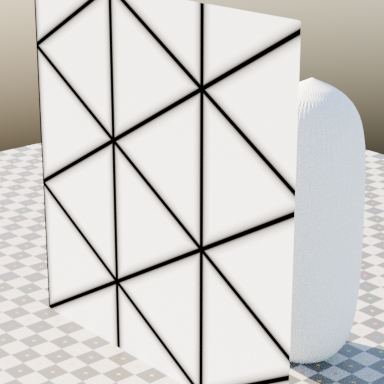

infinigen2 triangle_rand material_plane_uv render_cycles --seed 5 --passes rgb -r 384 384 -s 128 📋

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | None) -- (default: None)

• subtiles_number (pf.ProcNode[float] | float | None) -- (default: None)

• aspect_ratio (pf.ProcNode[float] | float | None) -- (default: None)

• border (pf.ProcNode[float] | float | None) -- (default: None)

• flatness (pf.ProcNode[float] | float | None) -- (default: None)

infinigen2.shaders.masks.tile_shapes.triangle_single(

vector=(0.0, 0.0, 0.0),

size=0.0,

) → TriangleSingleResult

Parameters:

• vector (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.0, 0.0, 0.0))

• size (pf.ProcNode[float] | float) -- (default: 0.0)

Module contents

Masks are reused geometric patterns used to combine or index other materials. These are usually black and white patterns, but can also include vector offsets or other integer / distance fields, such as for bricks and brick coordinates.
