Lighting (.lighting)

point_lighting

class infinigen2.lighting.point_lighting.ColoredLightsResult(environment, lights)

Bases: NamedTuple

environment: World

lights: list

infinigen2.lighting.point_lighting.floating_colored_lights_rand(

...,

) → ColoredLightsResult

Random-colored point lamps scattered in bbox against a black world, so a demo object reads as lit purely by the colored lights.

Example renders

infinigen2 floating_colored_lights_rand material_monkey render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 floating_colored_lights_rand material_monkey render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 floating_colored_lights_rand material_monkey render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 floating_colored_lights_rand material_monkey render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 floating_colored_lights_rand material_monkey render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 floating_colored_lights_rand material_monkey render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• bbox (tuple[ndarray, ndarray] | None) -- (default: None)

• n_lights (int | None) -- (default: None)

• max_lights (int) -- (default: 4)

• total_wattage (float | None) -- (default: None)

infinigen2.lighting.point_lighting.point_lamp_colored_rand(...) → LightObject

A point light whose emission uses a fully-random RGB color.

Parameters:

• rng (Generator)

• energy (float)

• color (tuple[float, float, float] | None) -- (default: None)

• shadow_soft_size (float | None) -- (default: None)

sky_lighting

class infinigen2.lighting.sky_lighting.EnvironmentResult(environment, lights)

Bases: NamedTuple

environment: World

lights: list

infinigen2.lighting.sky_lighting.hosek_wilkie_sky(...) → EnvironmentResult

Parameters:

• sun_elevation_deg (float) -- (default: 45.0)

• sun_rotation_deg (float) -- (default: 0.0)

• turbidity (float) -- (default: 2.0)

• ground_albedo (float) -- (default: 0.3)

• strength (float) -- (default: 7.5)

infinigen2.lighting.sky_lighting.hosek_wilkie_sky_rand(

rng,

sun_elevation_deg=None,

sun_rotation_deg=None,

) → EnvironmentResult

Example renders

infinigen2 hosek_wilkie_sky_rand material_monkey render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

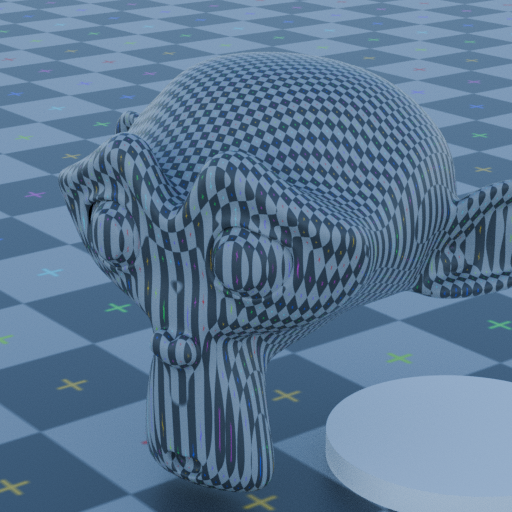

infinigen2 hosek_wilkie_sky_rand material_monkey render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 hosek_wilkie_sky_rand material_monkey render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

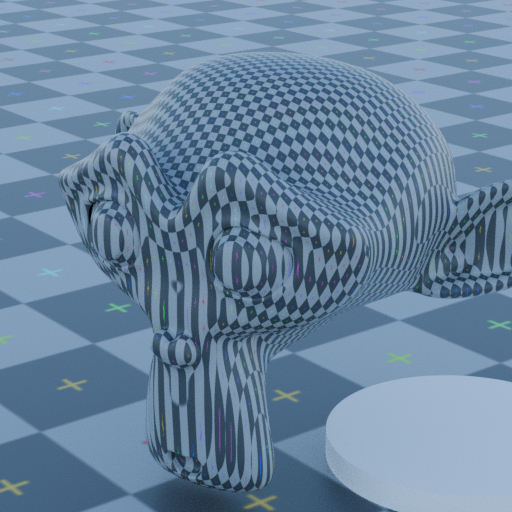

infinigen2 hosek_wilkie_sky_rand material_monkey render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 hosek_wilkie_sky_rand material_monkey render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 hosek_wilkie_sky_rand material_monkey render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• sun_elevation_deg (float | None) -- (default: None)

• sun_rotation_deg (float | None) -- (default: None)

infinigen2.lighting.sky_lighting.hosek_wilkie_sky_with_sun_lamp_rand(

...,

) → EnvironmentResult

Example renders

infinigen2 hosek_wilkie_sky_with_sun_lamp_rand material_monkey render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 hosek_wilkie_sky_with_sun_lamp_rand material_monkey render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 hosek_wilkie_sky_with_sun_lamp_rand material_monkey render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 hosek_wilkie_sky_with_sun_lamp_rand material_monkey render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 hosek_wilkie_sky_with_sun_lamp_rand material_monkey render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 hosek_wilkie_sky_with_sun_lamp_rand material_monkey render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• sun_elevation_deg (float | None) -- (default: None)

• sun_rotation_deg (float | None) -- (default: None)

• sun_intensity (float | None) -- (default: None)

• sun_size_deg (float | None) -- (default: None)

infinigen2.lighting.sky_lighting.nishita_sky(...) → EnvironmentResult

Parameters:

• sun_size_deg (float) -- (default: 0.5)

• sun_intensity (float) -- (default: 0.6)

• sun_elevation_deg (float) -- (default: 10.0)

• sun_rotation_deg (float) -- (default: 0.0)

• altitude (float) -- (default: 550.0)

• air_density (float) -- (default: 1.0)

• dust_density (float) -- (default: 1.0)

• ozone_density (float) -- (default: 1.0)

• strength (float) -- (default: 0.4)

• sun_disc (bool) -- (default: True)

infinigen2.lighting.sky_lighting.nishita_sky_rand(...) → EnvironmentResult

Example renders

infinigen2 nishita_sky_rand material_monkey render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 nishita_sky_rand material_monkey render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

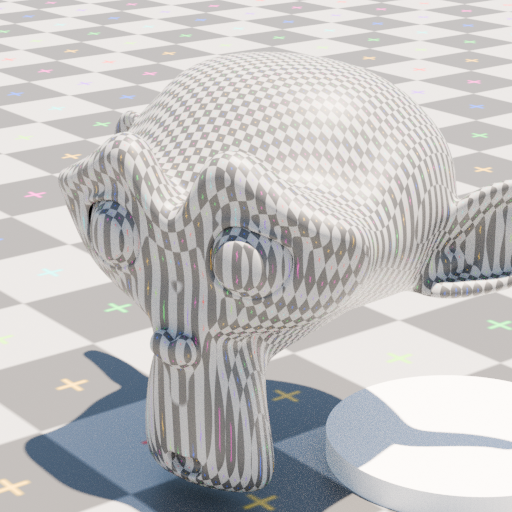

infinigen2 nishita_sky_rand material_monkey render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

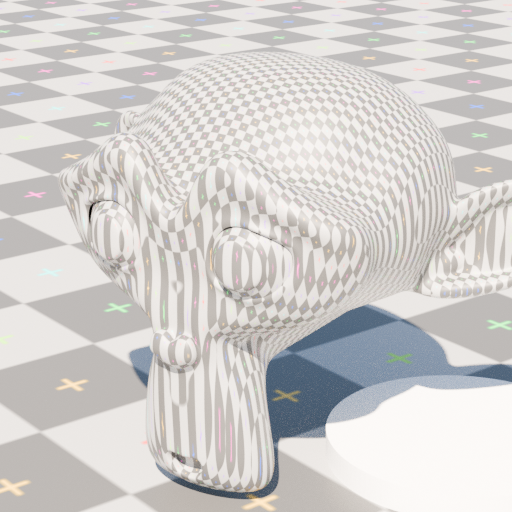

infinigen2 nishita_sky_rand material_monkey render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 nishita_sky_rand material_monkey render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

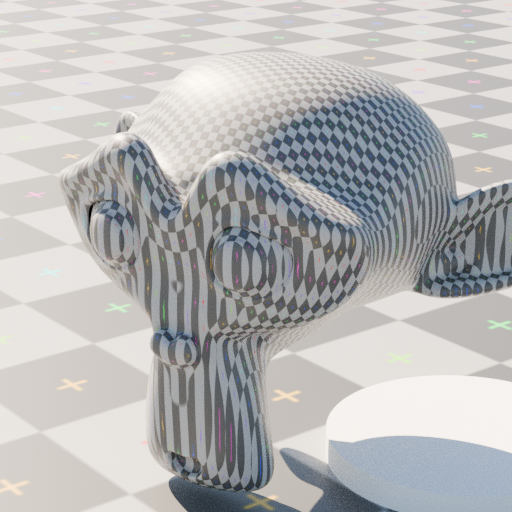

infinigen2 nishita_sky_rand material_monkey render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• sun_elevation_deg (float | None) -- (default: None)

• sun_rotation_deg (float | None) -- (default: None)

• sun_intensity (float | None) -- (default: None)

• sun_size_deg (float | None) -- (default: None)

• sun_disc (bool) -- (default: True)

infinigen2.lighting.sky_lighting.sky_with_sun_lamp_rand(...) → EnvironmentResult

Example renders

infinigen2 sky_with_sun_lamp_rand material_monkey render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

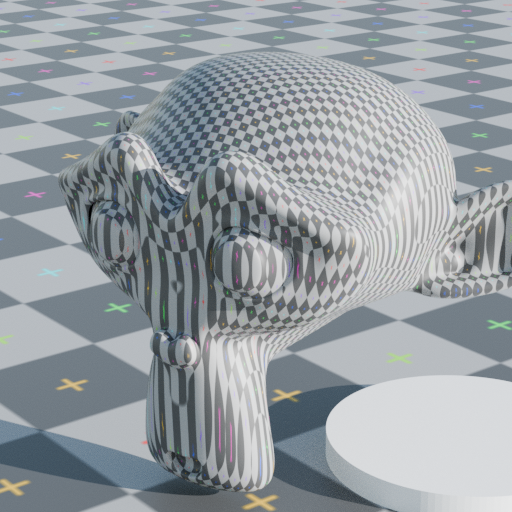

infinigen2 sky_with_sun_lamp_rand material_monkey render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

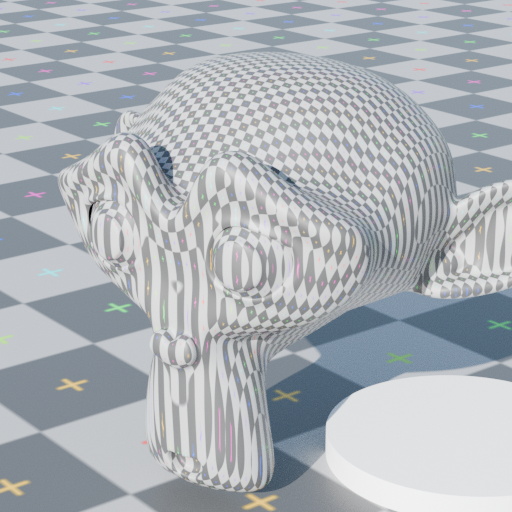

infinigen2 sky_with_sun_lamp_rand material_monkey render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 sky_with_sun_lamp_rand material_monkey render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

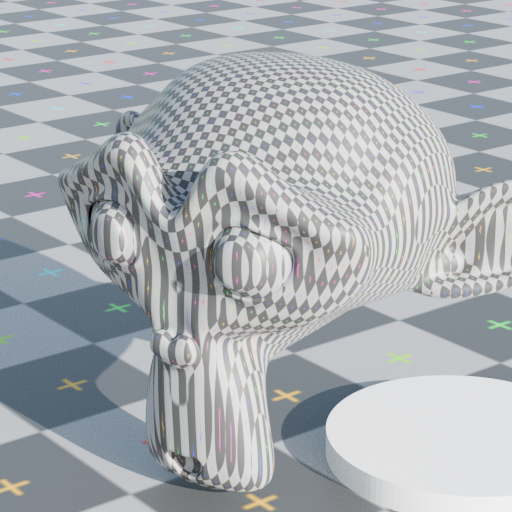

infinigen2 sky_with_sun_lamp_rand material_monkey render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

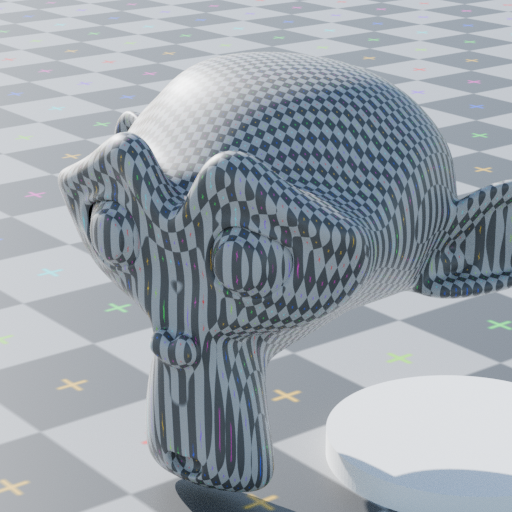

infinigen2 sky_with_sun_lamp_rand material_monkey render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• sun_elevation_deg (float | None) -- (default: None)

• sun_rotation_deg (float | None) -- (default: None)

• sun_intensity (float | None) -- (default: None)

Module contents
