Objects (.objects)

bookcase

class infinigen2.objects.bookcase.BookcaseResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.bookcase.bookcase(...) → BookcaseResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• side_board_thickness (float) -- (default: 0.0175)

• division_board_thickness (float) -- (default: 0.015)

• bottom_gap (float) -- (default: 0.1)

• backboard_thickness (float) -- (default: 0.015)

• screw_head_depth (float) -- (default: 0.005)

• screw_head_radius (float) -- (default: 0.0055)

• screw_head_dist (float) -- (default: 0.065)

• attach_thickness (float) -- (default: 0.0035)

• attach_width (float) -- (default: 0.025)

• attach_top_length (float) -- (default: 0.065)

• attach_back_length (float) -- (default: 0.035)

• frame_material (pf.Material | None) -- (default: None)

• metal_material (pf.Material | None) -- (default: None)

infinigen2.objects.bookcase.bookcase_rand(...) → BookcaseResult

Example renders

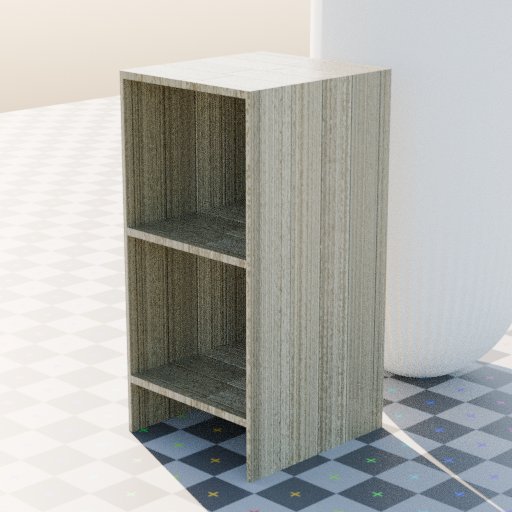

infinigen2 bookcase_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 bookcase_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 bookcase_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

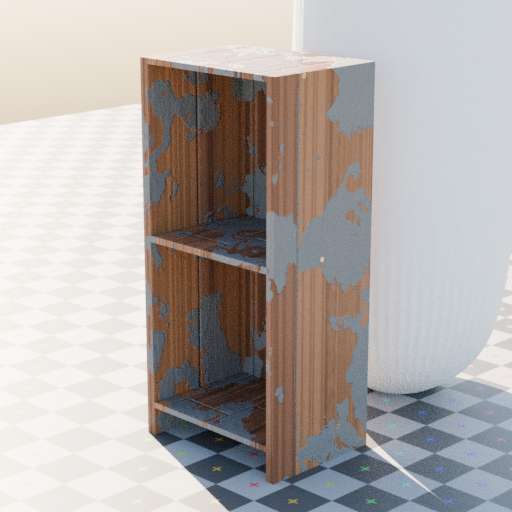

infinigen2 bookcase_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 bookcase_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

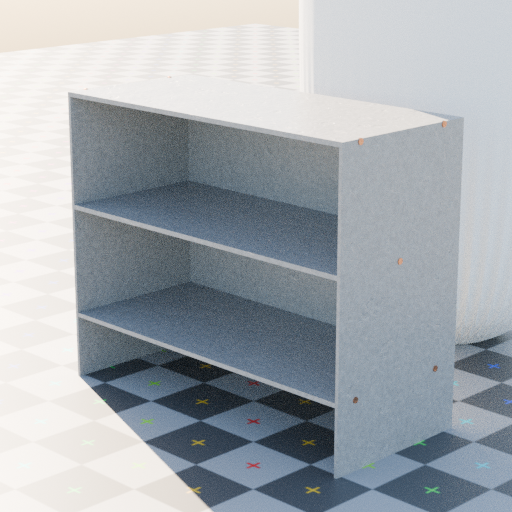

infinigen2 bookcase_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• frame_material (pf.Material | None) -- (default: None)

• metal_material (pf.Material | None) -- (default: None)

ceiling_light

class infinigen2.objects.ceiling_light.CeilingLightResult(mesh, light)

Bases: NamedTuple

mesh: pf.MeshObject

light: LightObject | None

infinigen2.objects.ceiling_light.black_for_reflections(shader) → pf.Material

Wrap a shader to appear black for reflected/glossy rays.

Parameters:

shader (pf.ProcNode[Shader])

infinigen2.objects.ceiling_light.ceiling_light(...) → CeilingLightResult

Parameters:

• radius (float) -- (default: 0.12)

• thickness (float) -- (default: 0.0275)

• inner_radius (float) -- (default: 0.078)

• height (float) -- (default: 0.063)

• inner_height (float) -- (default: 0.0504)

• curvature (float) -- (default: 0.3)

• energy (float) -- (default: 75.0)

• temperature (float) -- (default: 4500.0)

• shadow_soft_size (float) -- (default: 0.025)

• turned_on (bool) -- (default: True)

• frame_material (pf.Material | None) -- (default: None)

• bulb_material (pf.Material | None) -- (default: None)

infinigen2.objects.ceiling_light.ceiling_light_rand(...) → CeilingLightResult

Example renders

infinigen2 ceiling_light_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 ceiling_light_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

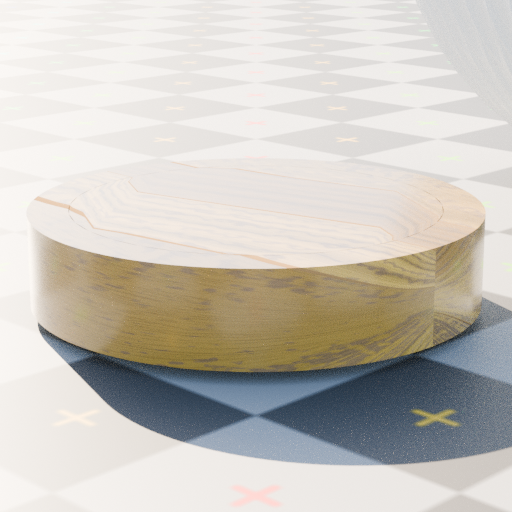

infinigen2 ceiling_light_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

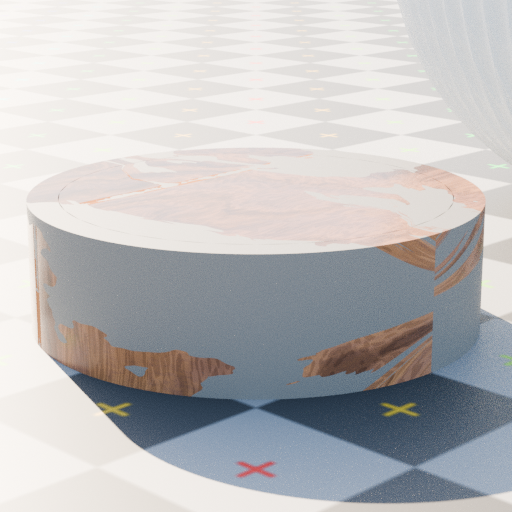

infinigen2 ceiling_light_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

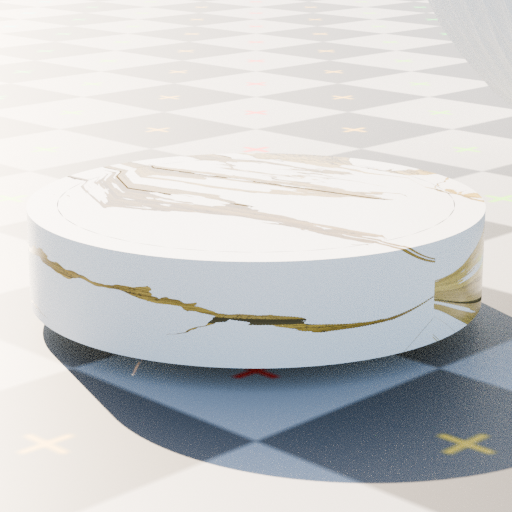

infinigen2 ceiling_light_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

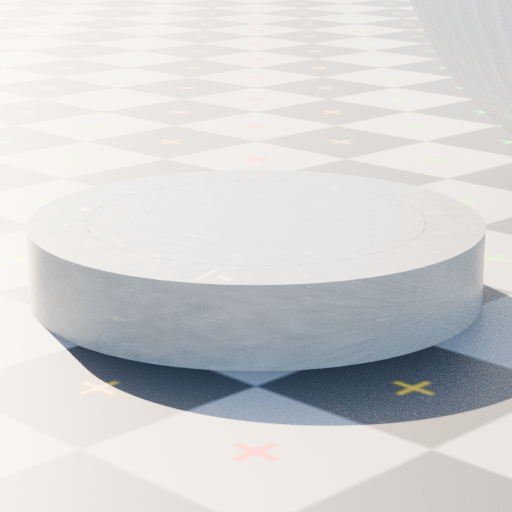

infinigen2 ceiling_light_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• energy (float | None) -- (default: None)

• shadow_soft_size (float | None) -- (default: None)

• temperature (float | None) -- (default: None)

• turned_on (bool) -- (default: True)

chair

class infinigen2.objects.chair.ChairResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

class infinigen2.objects.chair.DiningSeatResult(seat, back_edge)

Bases: NamedTuple

seat: pf.ProcNode[pf.MeshObject]

back_edge: pf.ProcNode[CurveObject]

infinigen2.objects.chair.chair_back(...) → ChairResult

Flat slatted back panel: vertical slats arrayed along a straight line in Y, capped by a corner-box top rail. Reusable as a bed headboard.

Parameters:

• dimensions (pf.Vector)

• n_slats (int)

• slat_width (float)

• slat_depth (float)

• crest_height (float)

• crest_offset (pf.Vector)

• crest_margin (float)

• crest_loops (int) -- (default: 0)

• slat_span (float) -- (default: 1.0)

infinigen2.objects.chair.chair_back_rand(

rng,

dimensions=None,

material=None,

) → ChairResult

Slatted wooden back. aspect runs the slat cross-section from flat (wide in Y) to near-square; the support-loop offset then rounds it toward a spindle once the subdivision modifier is applied.

Example renders

infinigen2 chair_back_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_back_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_back_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_back_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_back_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_back_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.chair.chair_back_solid(

dimensions,

top_rise=0.0,

n_points=24,

) → pf.ProcNode[pf.MeshObject]

Solid back: panel filled between a flat bottom edge and a top edge that bows up by top_rise (0 = square), then extruded for depth. The many fill points give it geometry to bend. dimensions = (depth, width, height).

Parameters:

• dimensions (pf.ProcNode[pf.Vector] | pf.Vector)

• top_rise (pf.ProcNode[float] | float) -- (default: 0.0)

• n_points (pf.ProcNode[int] | int) -- (default: 24)

infinigen2.objects.chair.chair_rand(rng, dimensions=None) → ChairResult

Any chair: randomly an office chair (curvy/round seat on a wheeled/pedestal/ leg base) or a wooden dining chair (bezier seat + slat back).

Example renders

infinigen2 chair_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 chair_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

infinigen2.objects.chair.curvy_seat(...) → ChairResult

Curved shell seat with an integrated backrest (v1 curvy_seats).

Parameters:

• u_resolution (int) -- (default: 256)

• v_resolution (int) -- (default: 128)

• width (float) -- (default: 0.5)

• thickness (float) -- (default: 0.03)

• front_relative_width (float) -- (default: 0.5)

• front_bent (float) -- (default: -0.38)

• seat_bent (float) -- (default: -0.56)

• mid_relative_width (float) -- (default: 0.5)

• mid_bent (float) -- (default: -0.7)

• back_relative_width (float) -- (default: 0.5)

• back_bent (float) -- (default: -0.2)

• top_relative_width (float) -- (default: 0.5)

• top_bent (float) -- (default: -0.2)

• seat_height (float) -- (default: 0.6)

• mid_pos (float) -- (default: 0.5)

infinigen2.objects.chair.curvy_seat_rand(

rng,

dimensions=None,

material=None,

) → ChairResult

Curved shell seat with an integrated backrest (v1 curvy_seats).

Example renders

infinigen2 curvy_seat_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 curvy_seat_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 curvy_seat_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 curvy_seat_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 curvy_seat_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 curvy_seat_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.chair.dining_chair_dimensions_rand(rng) → pf.Vector

Real dining-chair footprint (m): seat depth 0.41-0.46, width 0.40-0.50, seat height 0.45-0.50 (standard 45-50cm, tables 71-76cm).

Parameters:

rng (Generator)

infinigen2.objects.chair.dining_chair_rand(rng, dimensions=None) → ChairResult

Wooden dining chair: bezier-outline seat pan + slat or solid back bent to follow the seat’s rear edge, on straight legs. Real chair dimensions.

Example renders

infinigen2 dining_chair_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 dining_chair_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 dining_chair_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 dining_chair_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 dining_chair_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 dining_chair_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

infinigen2.objects.chair.dining_seat(...) → DiningSeatResult

Seat pan bridged between a rear edge and a front edge and extruded down by thickness. Both edges are bezier curves spanning the width at x = -/+depth/2; front_bow/back_bow bow each edge forward in x, front_dip scoops the front edge center down. Returns the pan mesh plus the rear edge curve (so the back can be bent to match it).

Parameters:

• depth (pf.ProcNode[float] | float)

• half_width (pf.ProcNode[float] | float)

• thickness (pf.ProcNode[float] | float)

• front_bow (pf.ProcNode[float] | float) -- (default: 0.0)

• back_bow (pf.ProcNode[float] | float) -- (default: 0.0)

• front_dip (pf.ProcNode[float] | float) -- (default: 0.0)

• n_points (pf.ProcNode[int] | int) -- (default: 16)

• material (pf.ProcNode[pf.Material] | None) -- (default: None)

infinigen2.objects.chair.office_chair_dimensions_rand(rng, width=None, seat_elevation=None) → pf.Vector

Footprint + seat elevation. v1 derived elevation as total(1.0-1.4) minus shell(0.5-0.7), whose independent tails gave bar-height 0.9m seats; sample the real-world seat elevation directly instead.

Parameters:

• rng (Generator)

• width (float | None) -- (default: None)

• seat_elevation (float | None) -- (default: None)

infinigen2.objects.chair.office_chair_rand(...) → ChairResult

Example renders

infinigen2 office_chair_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 office_chair_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 office_chair_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 office_chair_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 office_chair_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 office_chair_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• seat_material (pf.Material | None) -- (default: None)

• base_material (pf.Material | None) -- (default: None)

infinigen2.objects.chair.round_seat(...) → ChairResult

Backless round pad seat (v1 round_seats).

Parameters:

• thickness (float) -- (default: 0.1)

• radius (float) -- (default: 0.37)

• cap_radius (float) -- (default: 2.8)

• bevel_factor (float) -- (default: 0.028)

infinigen2.objects.chair.round_seat_rand(

rng,

dimensions=None,

material=None,

) → ChairResult

Backless round pad seat (v1 round_seats).

Example renders

infinigen2 round_seat_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 round_seat_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 round_seat_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 round_seat_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 round_seat_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 round_seat_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.chair.wheeled_base(...) → ChairResult

Five-star caster base with a central gas-lift pole (v1 wheeled leg).

Parameters:

• joint_height (float) -- (default: 0.0)

• leg_diameter (float) -- (default: 0.0)

• top_height (float) -- (default: 0.0)

• arc_sweep_angle (float) -- (default: 240.0)

• wheel_width (float) -- (default: 0.13)

• wheel_rotation (float) -- (default: 0.5)

• pole_length (float) -- (default: 1.8)

• leg_number (int) -- (default: 5)

• material (pf.Material | None) -- (default: None)

• wheel_material (pf.Material | None) -- (default: None)

infinigen2.objects.chair.wheeled_base_rand(...) → ChairResult

Five-star caster base with a central gas-lift pole (v1 wheeled leg).

Example renders

infinigen2 wheeled_base_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 wheeled_base_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 wheeled_base_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 wheeled_base_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 wheeled_base_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 wheeled_base_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

• wheel_material (pf.Material | None) -- (default: None)

desk

class infinigen2.objects.desk.DeskResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.desk.desk(...) → DeskResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• thickness (float) -- (default: 0.02)

• leg_radius (float) -- (default: 0.0175)

• leg_dist (float) -- (default: 0.0525)

• top_material (pf.Material | None) -- (default: None)

• leg_material (pf.Material | None) -- (default: None)

infinigen2.objects.desk.desk_rand(...) → DeskResult

Example renders

infinigen2 desk_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

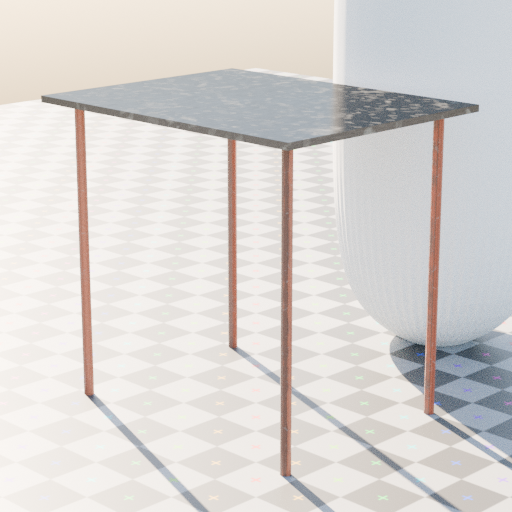

infinigen2 desk_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 desk_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

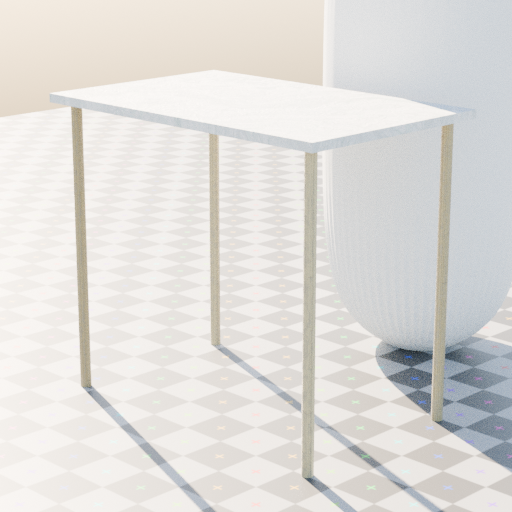

infinigen2 desk_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 desk_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 desk_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• top_material (pf.Material | None) -- (default: None)

• leg_material (pf.Material | None) -- (default: None)

dev

infinigen2.objects.dev.banana() → pf.MeshObject

door

class infinigen2.objects.door.DoorResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.door.door_body(

dimensions=None,

frame_material=None,

panel_material=None,

) → DoorResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• frame_material (pf.Material | None) -- (default: None)

• panel_material (pf.Material | None) -- (default: None)

infinigen2.objects.door.door_body_rand(...) → DoorResult

Example renders

infinigen2 door_body_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_body_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_body_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_body_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_body_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_body_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• frame_material (pf.Material | None) -- (default: None)

• panel_material (pf.Material | None) -- (default: None)

infinigen2.objects.door.door_with_handle(dimensions=None, material=None) → DoorResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.door.door_with_handle_rand(...) → DoorResult

Example renders

infinigen2 door_with_handle_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_with_handle_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_with_handle_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_with_handle_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_with_handle_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 door_with_handle_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

• handle (pf.MeshObject | None) -- (default: None)

drawers

class infinigen2.objects.drawers.DrawersResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.drawers.drawers(...) → DrawersResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• drawer_board_thickness (float) -- (default: 0.0075)

• drawer_side_height (float) -- (default: 0.125)

• drawer_width_gap (float) -- (default: 0.02)

• knob_radius (float) -- (default: 0.0045)

• knob_length (float) -- (default: 0.0265)

• frame_material (pf.Material | None) -- (default: None)

infinigen2.objects.drawers.drawers_rand(

rng,

dimensions=None,

frame_material=None,

) → DrawersResult

Example renders

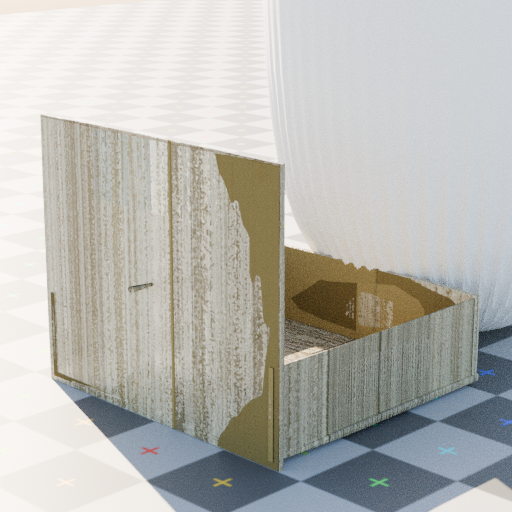

infinigen2 drawers_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

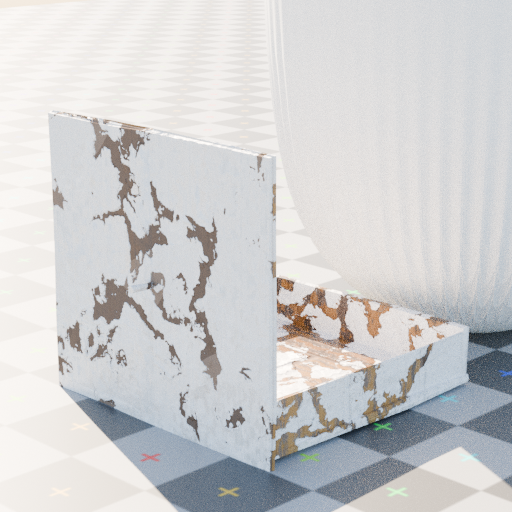

infinigen2 drawers_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

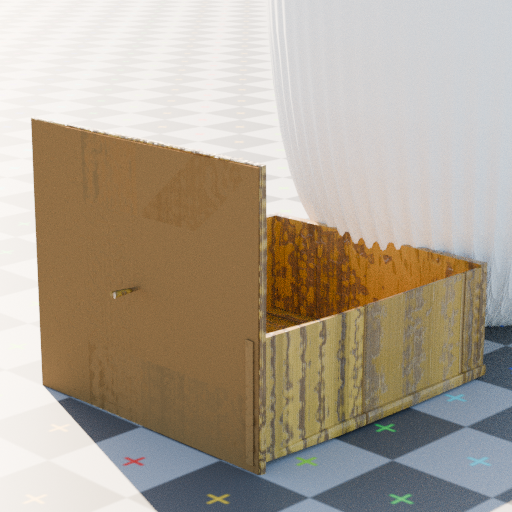

infinigen2 drawers_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 drawers_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 drawers_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

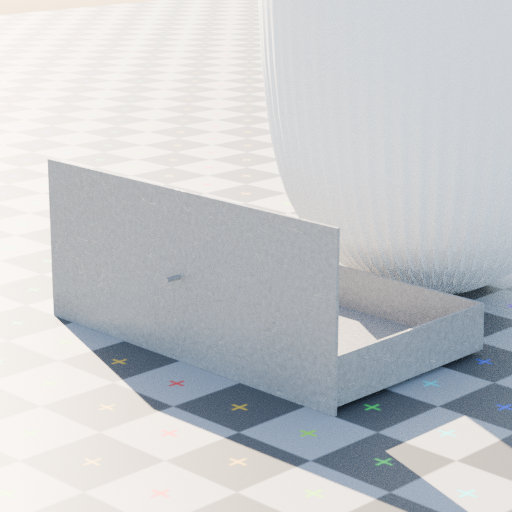

infinigen2 drawers_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• frame_material (pf.Material | None) -- (default: None)

flower

class infinigen2.objects.flower.FlowerMaterials(petal, center)

Bases: NamedTuple

petal: pf.Material

center: pf.Material

class infinigen2.objects.flower.FlowerResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.flower.center_material() → pf.Material

infinigen2.objects.flower.flower(...) → FlowerResult

Parameters:

• center_rad (float) -- (default: 0.0156)

• petal_dims (pf.Vector) -- (default: (0.109, 0.0049, 0.0875))

• seed_size (float) -- (default: 0.001)

• min_petal_angle (float) -- (default: 0.35)

• max_petal_angle (float) -- (default: 1.4)

• wrinkle (float) -- (default: 0.01)

• curl (float) -- (default: 0.524)

• petal_material (pf.Material | None) -- (default: None)

• center_material (pf.Material | None) -- (default: None)

infinigen2.objects.flower.flower_rand(rng, materials=None) → FlowerResult

Example renders

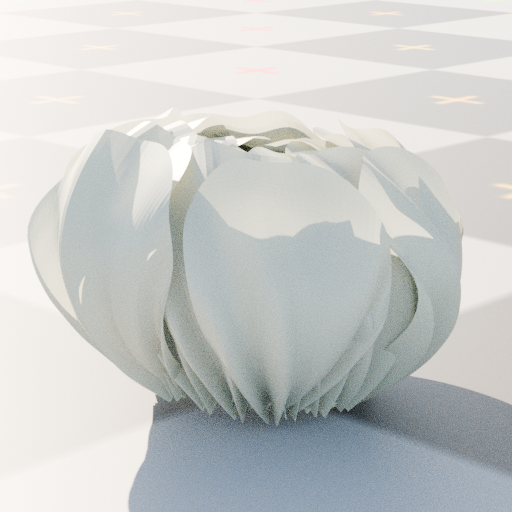

infinigen2 flower_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 flower_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 flower_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 flower_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 flower_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

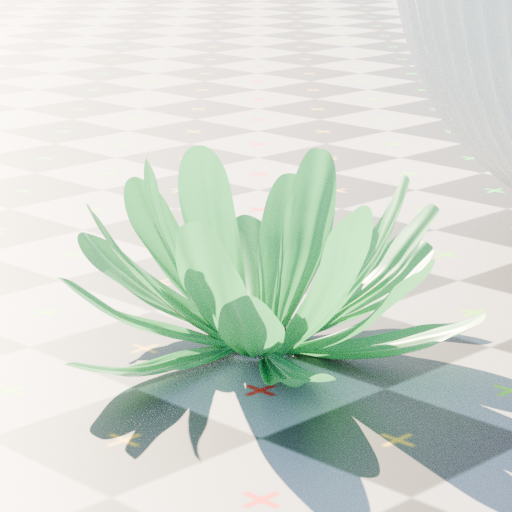

infinigen2 flower_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• materials (FlowerMaterials | None) -- (default: None)

handles

class infinigen2.objects.handles.HandleResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.handles.bar_pull_handle(material=None) → HandleResult

Parameters:

material (pf.Material | None) -- (default: None)

infinigen2.objects.handles.bar_pull_handle_rand(rng, material=None) → HandleResult

Example renders

infinigen2 bar_pull_handle_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 bar_pull_handle_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 bar_pull_handle_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 bar_pull_handle_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 bar_pull_handle_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 bar_pull_handle_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.handles.curved_pull_handle(material=None) → HandleResult

Parameters:

material (pf.Material | None) -- (default: None)

infinigen2.objects.handles.curved_pull_handle_rand(rng, material=None) → HandleResult

Example renders

infinigen2 curved_pull_handle_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 curved_pull_handle_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 curved_pull_handle_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 curved_pull_handle_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 curved_pull_handle_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 curved_pull_handle_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.handles.handle_rand(rng, material=None) → HandleResult

Parameters:

• rng (Generator)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.handles.knob_handle(material=None) → HandleResult

Parameters:

material (pf.Material | None) -- (default: None)

infinigen2.objects.handles.knob_handle_rand(rng, material=None) → HandleResult

Example renders

infinigen2 knob_handle_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 knob_handle_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 knob_handle_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 knob_handle_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 knob_handle_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 knob_handle_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.handles.lever_handle(material=None) → HandleResult

Parameters:

material (pf.Material | None) -- (default: None)

infinigen2.objects.handles.lever_handle_rand(rng, material=None) → HandleResult

Example renders

infinigen2 lever_handle_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 lever_handle_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 lever_handle_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 lever_handle_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 lever_handle_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 lever_handle_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• material (pf.Material | None) -- (default: None)

lamp

class infinigen2.objects.lamp.LampResult(mesh, light)

Bases: NamedTuple

mesh: pf.MeshObject

light: LightObject

class infinigen2.objects.lamp.LampshadeShape(...)

Bases: NamedTuple

top_radius: float

bot_radius: float

mid_radius: float

profile_resolution: int

infinigen2.objects.lamp.desk_lamp_rand(rng) → LampResult

Example renders

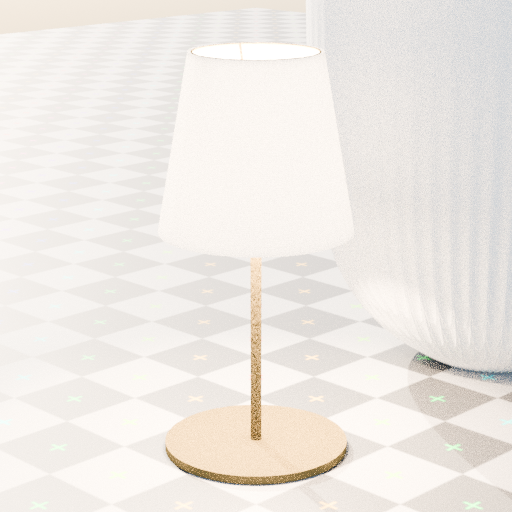

infinigen2 desk_lamp_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

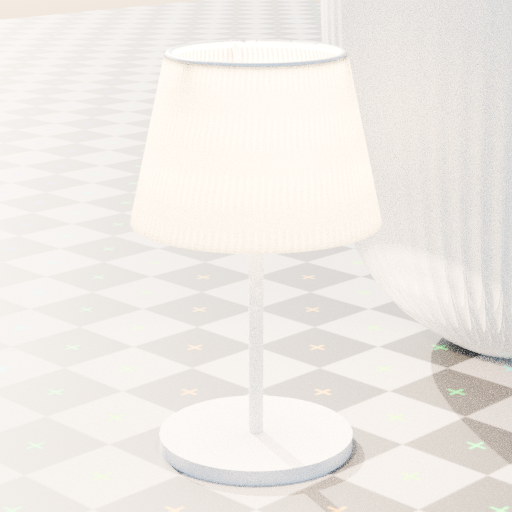

infinigen2 desk_lamp_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 desk_lamp_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 desk_lamp_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

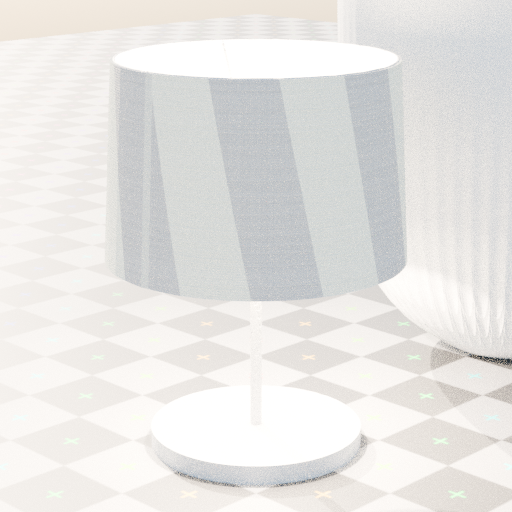

infinigen2 desk_lamp_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

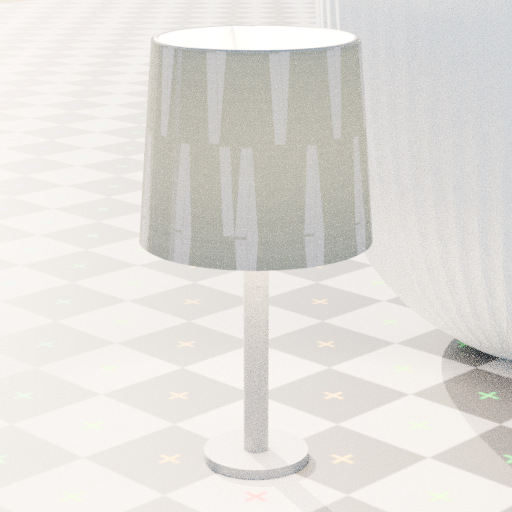

infinigen2 desk_lamp_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

rng (Generator)

infinigen2.objects.lamp.hanging_lampshade_shape_rand(rng) → LampshadeShape

Parameters:

rng (Generator)

infinigen2.objects.lamp.point_light_indoor(

energy=10.0,

temperature=4500.0,

shadow_soft_size=0.02,

) → LightObject

Create a point light with blackbody temperature roughly based on indoor lighting. range 3500-6500K. was expanded to 2000-8000

Parameters:

• energy (float) -- (default: 10.0)

• temperature (float) -- (default: 4500.0)

• shadow_soft_size (float) -- (default: 0.02)

infinigen2.objects.lamp.point_light_indoor_rand(...) → LightObject

Parameters:

• rng (Generator)

• energy (float | None) -- (default: None)

• temperature (float | None) -- (default: None)

• shadow_soft_size (float) -- (default: 0.02)

infinigen2.objects.lamp.lamp(...) → LampResult

Parameters:

• stand_radius (float) -- (default: 0.01)

• base_radius (float) -- (default: 0.1)

• base_height (float) -- (default: 0.02)

• shade_height (float) -- (default: 0.24)

• head_top_radius (float) -- (default: 0.16)

• head_bot_radius (float) -- (default: 0.185)

• head_mid_radius (float | None) -- (default: None)

• profile_resolution (int) -- (default: 16)

• height (float) -- (default: 0.45)

• rack_thickness (float) -- (default: 0.002)

• reverse_lamp (bool) -- (default: True)

• energy (float) -- (default: 7.0)

• temperature (float) -- (default: 4500.0)

• black_material (pf.Material | None) -- (default: None)

• lampshade_material (pf.Material | None) -- (default: None)

• metal_material (pf.Material | None) -- (default: None)

infinigen2.objects.lamp.lamp_rand(...) → LampResult

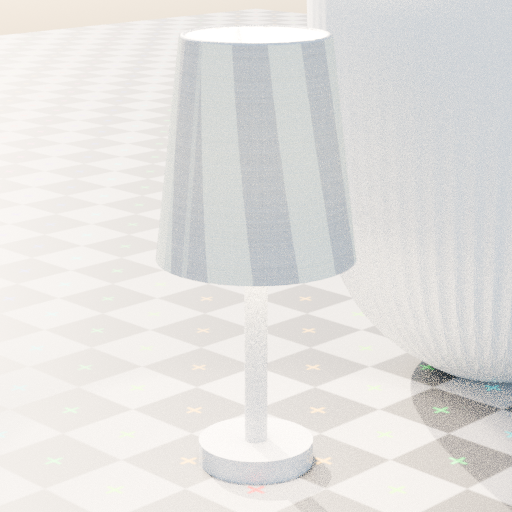

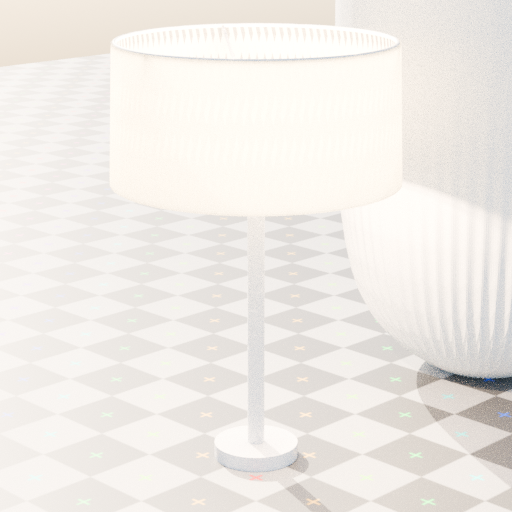

Example renders

infinigen2 lamp_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 lamp_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

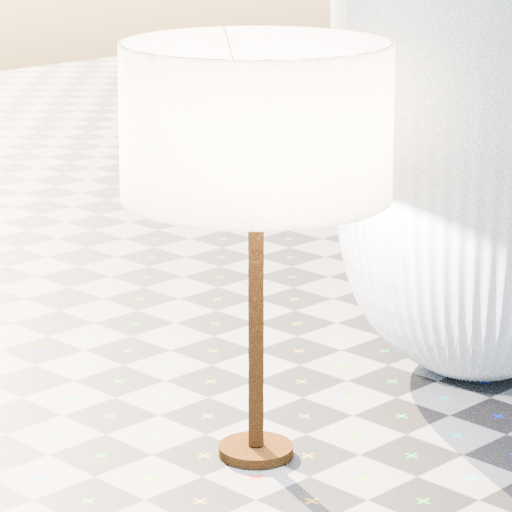

infinigen2 lamp_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 lamp_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 lamp_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 lamp_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• height (float | None) -- (default: None)

• temperature (float | None) -- (default: None)

• energy (float | None) -- (default: None)

• head_top_radius (float | None) -- (default: None)

• head_bot_radius (float | None) -- (default: None)

• head_mid_radius (float | None) -- (default: None)

• profile_resolution (int | None) -- (default: None)

infinigen2.objects.lamp.lampshade_color_rand(rng) → pf.Color

Parameters:

rng (Generator)

infinigen2.objects.lamp.lampshade_fabric_rand(rng, vector) → pf.Material

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector])

infinigen2.objects.lamp.lampshade_shape_rand(rng) → LampshadeShape

Parameters:

rng (Generator)

random_primitives

class infinigen2.objects.random_primitives.EffectResult(mesh, subsurf_levels)

Bases: NamedTuple

mesh: pf.MeshObject

subsurf_levels: int

class infinigen2.objects.random_primitives.PrimitivesResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.random_primitives.circle_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.cone_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.cube_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.cylinder_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.effect_bevel(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_decimate(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_fractal_jitter(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_noise_warp(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_none(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_screw_ring(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_screw_spiral(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_solidify(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_taper(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_twist(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.effect_wireframe(rng, obj) → EffectResult

Parameters:

• rng (Generator)

• obj (pf.MeshObject)

infinigen2.objects.random_primitives.end_fill_type_rand(rng) → str

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.grid_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.icosphere_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.monkey_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.plane_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.primitive_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.primitive_with_effect_rand(

rng,

target_size=None,

max_subsurf_levels=None,

) → PrimitivesResult

Example renders

infinigen2 primitive_with_effect_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 primitive_with_effect_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 primitive_with_effect_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 primitive_with_effect_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 primitive_with_effect_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 primitive_with_effect_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• target_size (float | None) -- (default: None)

• max_subsurf_levels (int | None) -- (default: None)

infinigen2.objects.random_primitives.torus_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

infinigen2.objects.random_primitives.uv_sphere_rand(rng) → pf.MeshObject

Parameters:

rng (Generator)

rug

class infinigen2.objects.rug.RugResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.rug.rug(...) → RugResult

Parameters:

• width (float) -- (default: 2.5)

• length (float) -- (default: 3.125)

• fillet_radius (float) -- (default: 0.625)

• thickness (float) -- (default: 0.015)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.rug.rug_rand(rng, dimensions=None) → RugResult

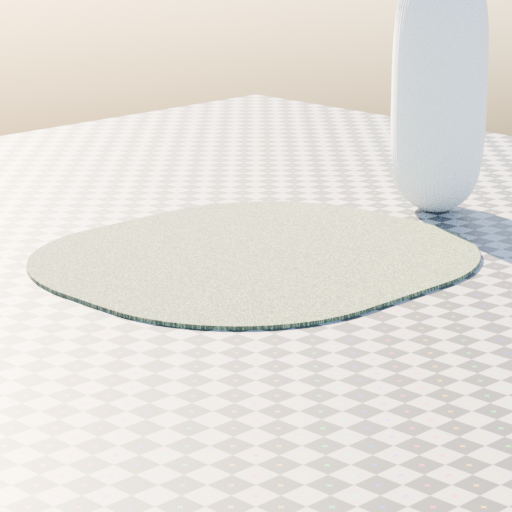

Example renders

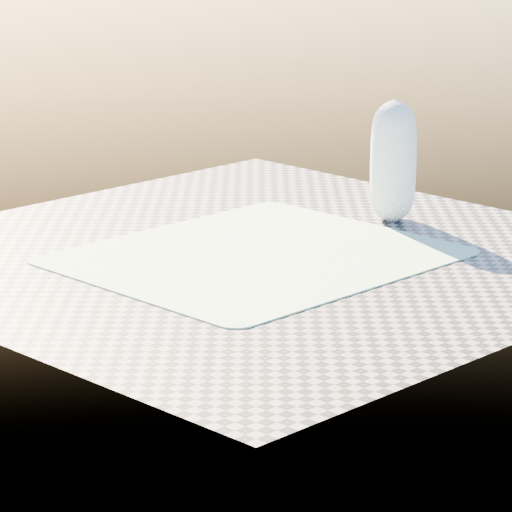

infinigen2 rug_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

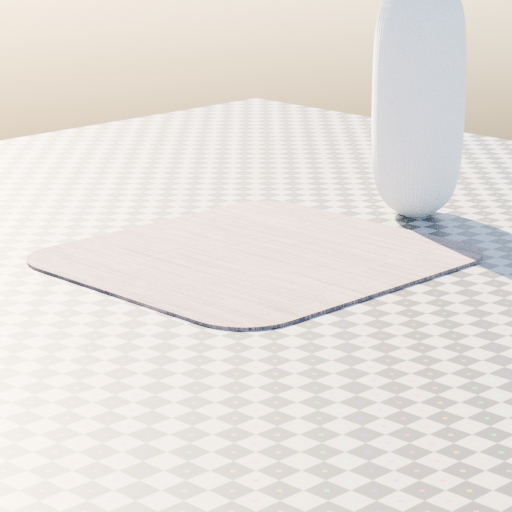

infinigen2 rug_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 rug_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 rug_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 rug_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

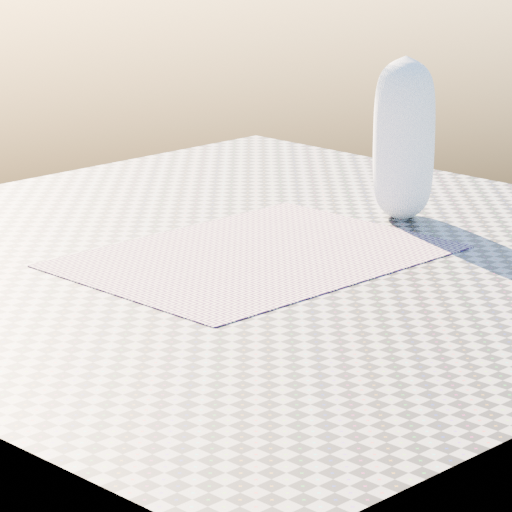

infinigen2 rug_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

sofa

class infinigen2.objects.sofa.SofaResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.sofa.sofa(...) → SofaResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• arm_dimensions (pf.Vector) -- (default: (1.0, 0.105, 0.625))

• back_dimensions (pf.Vector) -- (default: (0.2, 0.0, 0.625))

• seat_dimensions (pf.Vector | None) -- (default: None)

• foot_dimensions (pf.Vector) -- (default: (0.16, 0.06, 0.06))

• baseboard_height (float) -- (default: 0.07)

• backrest_width (float) -- (default: 0.15)

• seat_margin (float) -- (default: 0.985)

• backrest_angle (float) -- (default: -0.325)

• arm_width (float) -- (default: 0.75)

• arm_type (int) -- (default: 0)

• arm_height (float) -- (default: 0.8)

• arms_angle (float) -- (default: 0.54)

• reflection (int) -- (default: 1)

• leg_type (bool) -- (default: True)

• leg_dimensions (float) -- (default: 0.65)

• leg_z (float) -- (default: 1.8)

• leg_faces (int) -- (default: 4)

• body_crease (float) -- (default: 0.7)

• cushion_crease (float) -- (default: 0.15)

• arm_back_crease (float) -- (default: 0.2)

• fabric_material (pf.Material | None) -- (default: None)

• foot_material (pf.Material | None) -- (default: None)

infinigen2.objects.sofa.sofa_rand(...) → SofaResult

Example renders

infinigen2 sofa_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 sofa_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 sofa_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 sofa_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 sofa_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 sofa_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

• foot_material (pf.Material | None) -- (default: None)

storage

class infinigen2.objects.storage.StorageResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.storage.cabinet_with_door(

dimensions=None,

frame_material=None,

) → StorageResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• frame_material (pf.Material | None) -- (default: None)

infinigen2.objects.storage.cabinet_with_door_rand(rng, dimensions=None) → StorageResult

Example renders

infinigen2 cabinet_with_door_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 cabinet_with_door_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 cabinet_with_door_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 cabinet_with_door_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 cabinet_with_door_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 cabinet_with_door_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

infinigen2.objects.storage.shelves(...) → StorageResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• n_spaces_y (int) -- (default: 3)

• n_spaces_z (int) -- (default: 4)

• frame_thickness (float) -- (default: 0.03)

• row_divider_width (float) -- (default: 0.025)

• col_divider_width (float) -- (default: 0.02)

• back_width (float) -- (default: 0.02)

• frame_material (pf.Material | None) -- (default: None)

infinigen2.objects.storage.shelves_rand(...) → StorageResult

Example renders

infinigen2 shelves_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 shelves_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 shelves_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 shelves_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 shelves_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 shelves_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• frame_material (pf.Material | None) -- (default: None)

• back_width (float | None) -- (default: None)

table

class infinigen2.objects.table.TableResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.table.base_square(...) → TableResult

2 box-frame legs.

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• leg_diameter (float) -- (default: 0.085)

• leg_placement_top_scale (float) -- (default: 0.8)

• leg_placement_bottom_scale (float) -- (default: 1.0)

• has_bottom_connector (bool) -- (default: True)

infinigen2.objects.table.base_square_rand(

rng,

dimensions=None,

material=None,

) → TableResult

2 box-frame legs.

Example renders

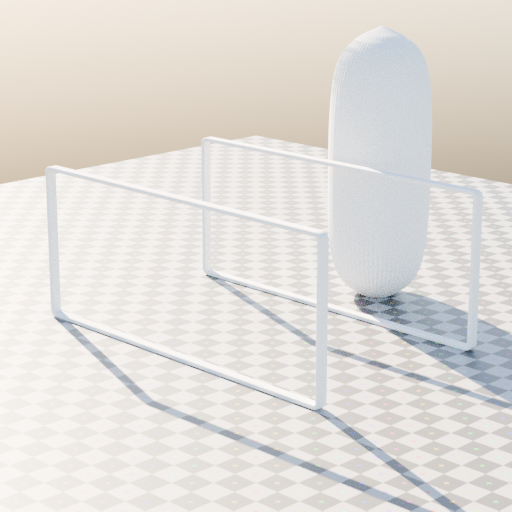

infinigen2 base_square_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 base_square_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 base_square_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 base_square_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 base_square_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 base_square_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.table.base_straight(...) → TableResult

4-leg base with optional stretchers.

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• leg_diameter (float) -- (default: 0.06)

• leg_placement_top_scale (float) -- (default: 0.8)

• leg_placement_bottom_scale (float) -- (default: 1.1)

• stretcher_increment (int) -- (default: 1)

• stretcher_relative_pos (float) -- (default: 0.4)

infinigen2.objects.table.base_straight_rand(

rng,

dimensions=None,

material=None,

) → TableResult

4-leg base with optional stretchers.

Example renders

infinigen2 base_straight_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

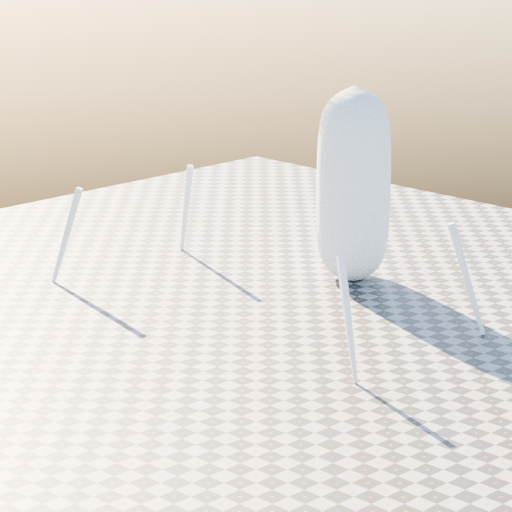

infinigen2 base_straight_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 base_straight_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

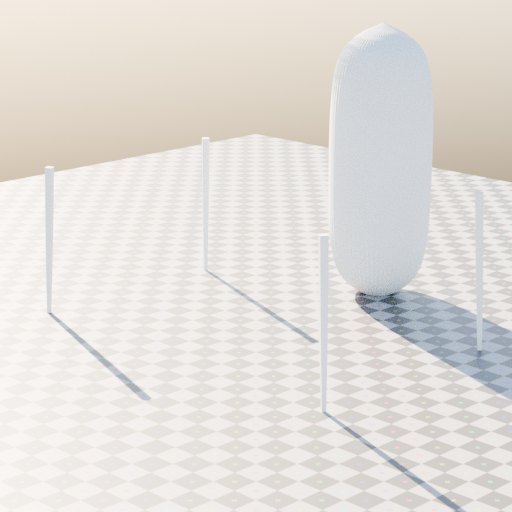

infinigen2 base_straight_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

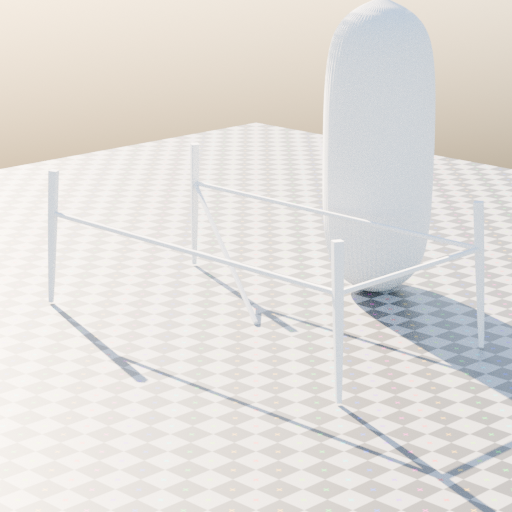

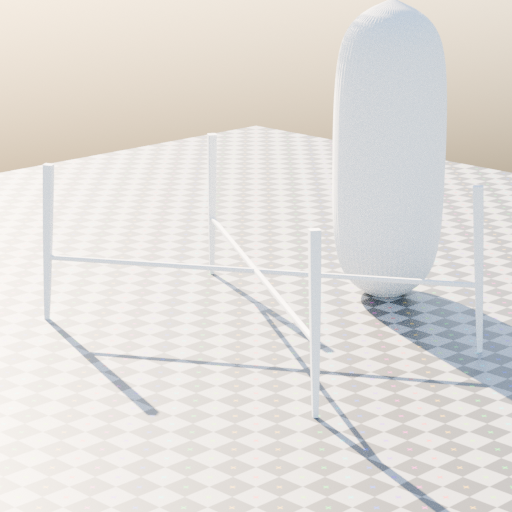

infinigen2 base_straight_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 base_straight_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

infinigen2.objects.table.cocktail_table_rand(rng) → TableResult

Tall square cocktail/bar table with single pedestal base.

Example renders

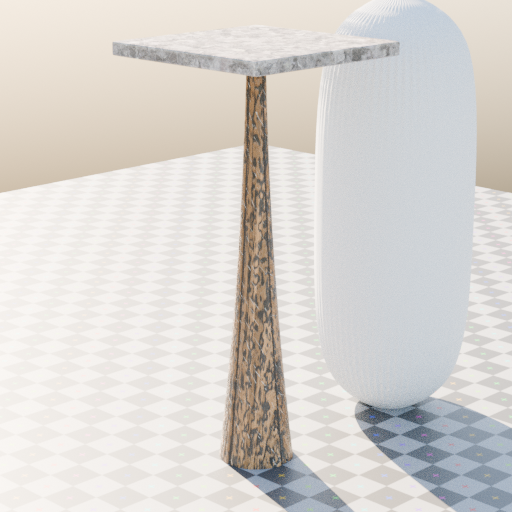

infinigen2 cocktail_table_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 cocktail_table_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 cocktail_table_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

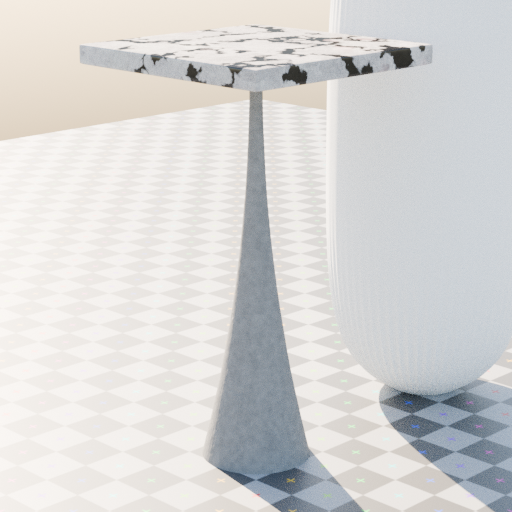

infinigen2 cocktail_table_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

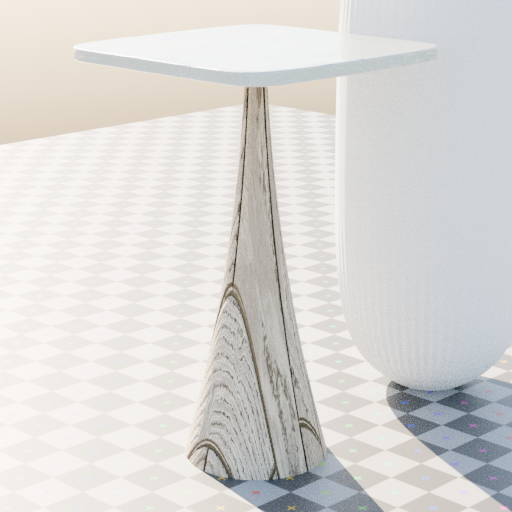

infinigen2 cocktail_table_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

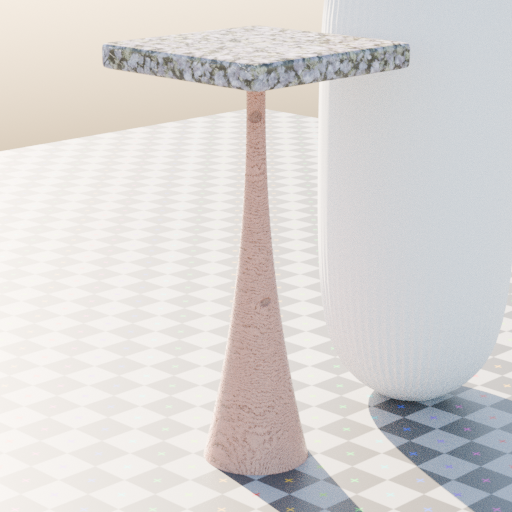

infinigen2 cocktail_table_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

rng (Generator)

infinigen2.objects.table.coffee_table_rand(rng) → TableResult

Low rectangular coffee table.

Example renders

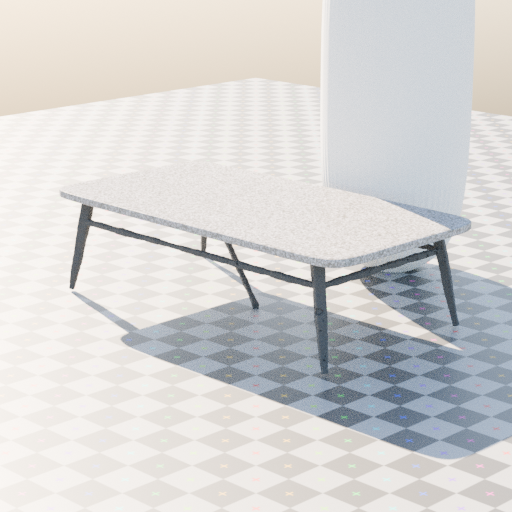

infinigen2 coffee_table_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 coffee_table_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 coffee_table_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

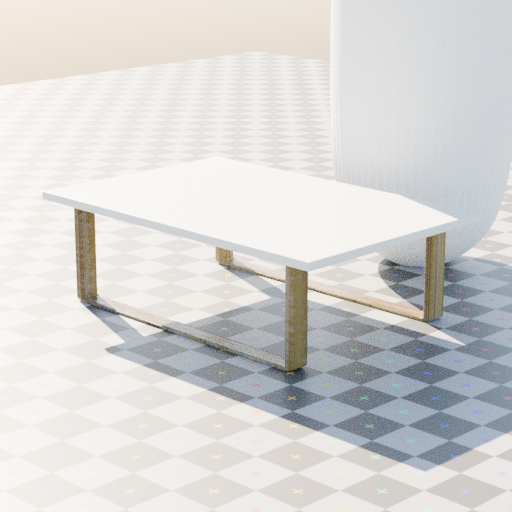

infinigen2 coffee_table_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

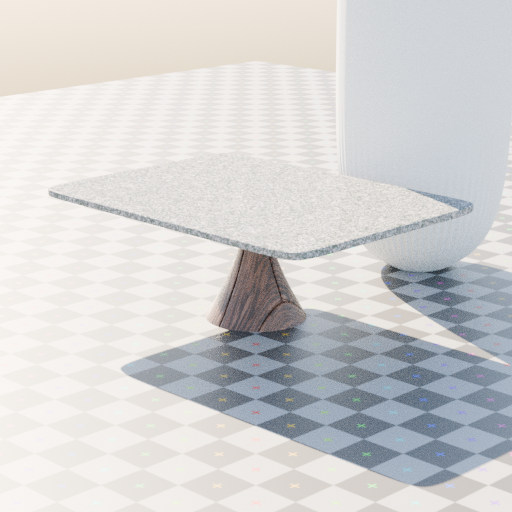

infinigen2 coffee_table_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 coffee_table_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

rng (Generator)

infinigen2.objects.table.dining_table_rand(...) → TableResult

Example renders

infinigen2 dining_table_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

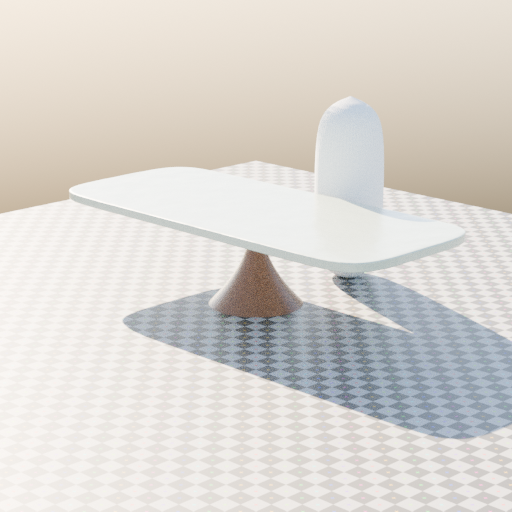

infinigen2 dining_table_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 dining_table_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 dining_table_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

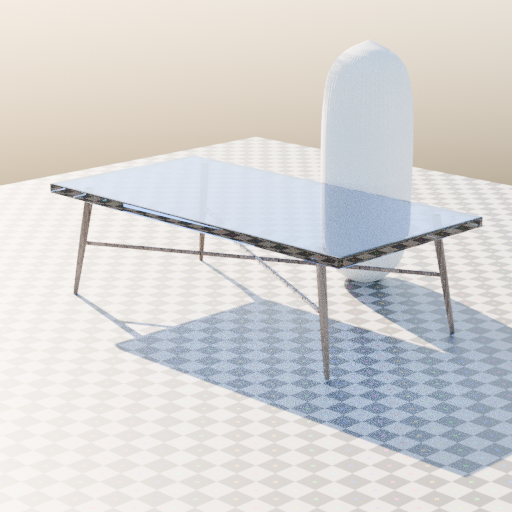

infinigen2 dining_table_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

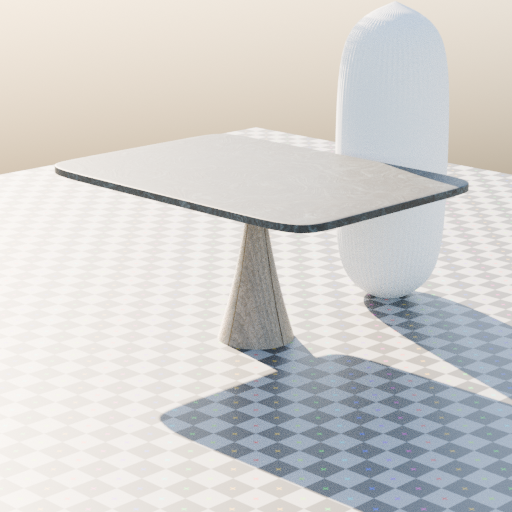

infinigen2 dining_table_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (tuple[float, float, float] | None) -- (default: None)

• base (pf.MeshObject | None) -- (default: None)

• top_thickness (float | None) -- (default: None)

• top_material (pf.Material | None) -- (default: None)

• leg_material (pf.Material | None) -- (default: None)

infinigen2.objects.table.pedestal_base(...) → TableResult

Rotationally symmetric pedestal: stays skinny then flares out low (flare/concavity); neck_scale bulges or waists the upper column.

Parameters:

• height (float)

• top_radius (float) -- (default: 0.03)

• bottom_radius (float) -- (default: 0.2)

• flare (float) -- (default: 0.75)

• concavity (float) -- (default: 0.0)

• neck_scale (float) -- (default: 1.0)

• resolution (int) -- (default: 64)

infinigen2.objects.table.pedestal_base_rand(...) → TableResult

Rotationally symmetric pedestal spanning z in [0, dimensions.z]: a low-flare silhouette with random concavity and a bulged/waisted upper column. Radius ranges default from the footprint; callers override them.

Example renders

infinigen2 pedestal_base_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 pedestal_base_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 pedestal_base_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 pedestal_base_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 pedestal_base_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 pedestal_base_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

• top_radius_range (tuple[float, float] | None) -- (default: None)

• bottom_radius_range (tuple[float, float] | None) -- (default: None)

infinigen2.objects.table.side_table_dimensions_rand(rng) → pf.Vector

Side table dimensions.

Parameters:

rng (Generator)

infinigen2.objects.table.side_table_rand(rng) → TableResult

Side table.

Example renders

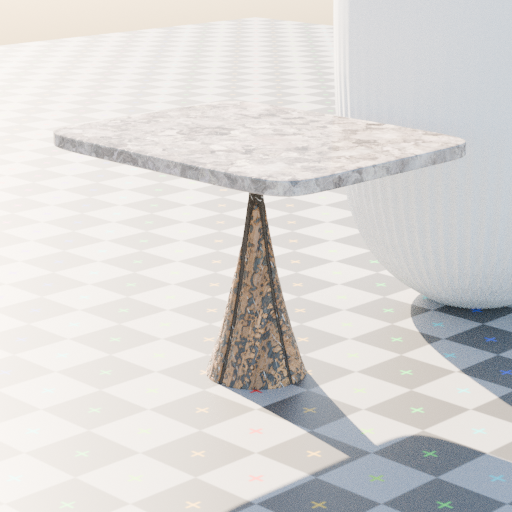

infinigen2 side_table_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

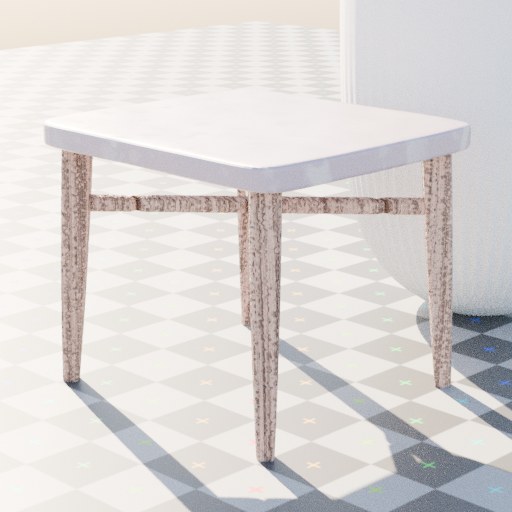

infinigen2 side_table_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 side_table_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 side_table_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

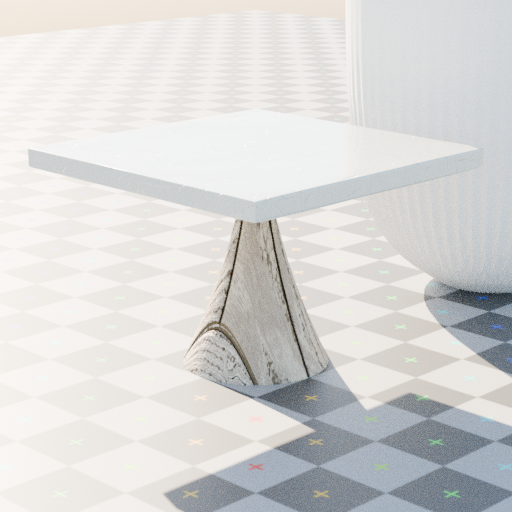

infinigen2 side_table_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

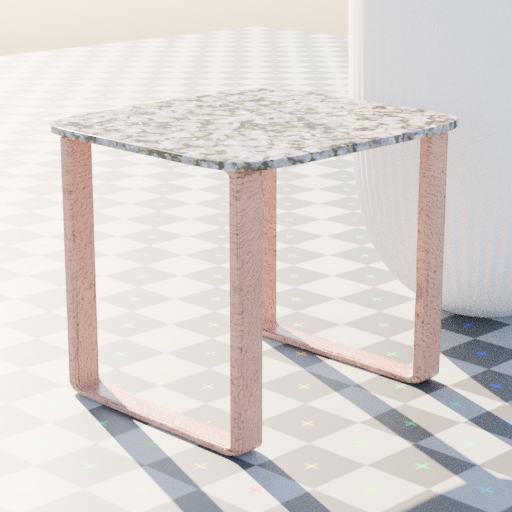

infinigen2 side_table_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

rng (Generator)

infinigen2.objects.table.table_dimensions_rand(rng, width=None, height=None) → pf.Vector

Default dining table dimensions.

Parameters:

• rng (Generator)

• width (float | None) -- (default: None)

• height (float | None) -- (default: None)

infinigen2.objects.table.table_top(

size=(1.4, 0.8, 0.05),

support_loop_offset=(0.02, 0.02, 0.01),

) → pf.ProcNode[pf.MeshObject]

Slab spanning z in [0, size.z]; support_loop_offset sets edge roundness. Subdivision is left to an unapplied modifier on the final object.

Parameters:

• size (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (1.4, 0.8, 0.05))

• support_loop_offset (pf.ProcNode[pf.Vector] | pf.Vector) -- (default: (0.02, 0.02, 0.01))

triangle_shelf

class infinigen2.objects.triangle_shelf.TriangleShelfResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.triangle_shelf.triangle_shelf(...) → TriangleShelfResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• leg_board_gap (float) -- (default: 0.0035)

• leg_width (float) -- (default: 0.02)

• leg_depth (float) -- (default: 0.015)

• leg_curvature_ratio (float) -- (default: 0.01)

• board_thickness (float) -- (default: 0.0175)

• board_extrude_length (float) -- (default: 0.05)

• side_board_height (float) -- (default: 0.03)

• bottom_layer_height (float) -- (default: 0.075)

• mid_layer_height (float | None) -- (default: None)

• top_layer_height (float | None) -- (default: None)

• leg_material (pf.Material | None) -- (default: None)

• board_material (pf.Material | None) -- (default: None)

• screw_material (pf.Material | None) -- (default: None)

infinigen2.objects.triangle_shelf.triangle_shelf_rand(...) → TriangleShelfResult

Example renders

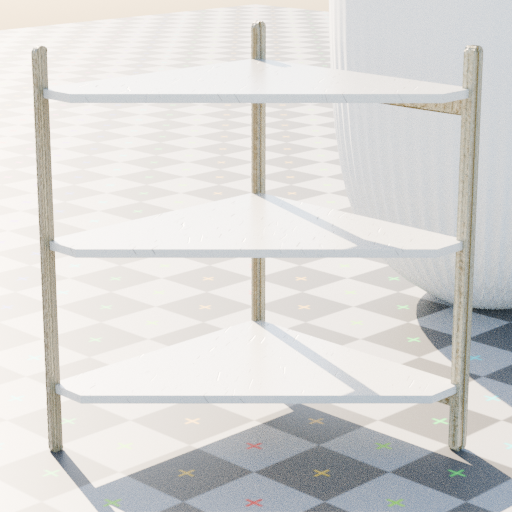

infinigen2 triangle_shelf_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 triangle_shelf_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 triangle_shelf_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 triangle_shelf_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

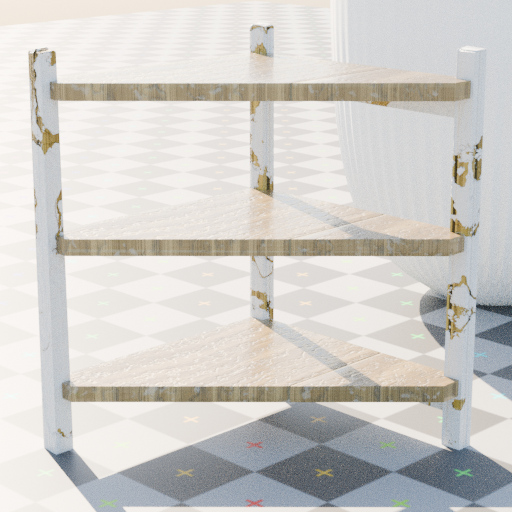

infinigen2 triangle_shelf_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 triangle_shelf_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• leg_material (pf.Material | None) -- (default: None)

• board_material (pf.Material | None) -- (default: None)

• screw_material (pf.Material | None) -- (default: None)

vase

class infinigen2.objects.vase.VaseResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.vase.vase(...) → VaseResult

Parameters:

• u_resolution (int) -- (default: 64)

• v_resolution (int) -- (default: 64)

• height (float) -- (default: 0.33)

• diameter (float) -- (default: 0.15)

• profile_inner_radius (float) -- (default: 1.0)

• profile_star_points (int) -- (default: 24)

• top_scale (float) -- (default: 0.5)

• neck_mid_position (float) -- (default: 0.85)

• neck_position (float) -- (default: 0.75)

• neck_scale (float) -- (default: 0.5)

• shoulder_position (float) -- (default: 0.5)

• shoulder_thickness (float) -- (default: 0.175)

• foot_scale (float) -- (default: 0.5)

• foot_height (float) -- (default: 0.05)

• material (pf.Material | None) -- (default: None)

• thickness (float) -- (default: 0.0075)

infinigen2.objects.vase.vase_material_rand(rng, vec) → pf.Material

Parameters:

• rng (Generator)

• vec

infinigen2.objects.vase.vase_rand(rng) → VaseResult

Example renders

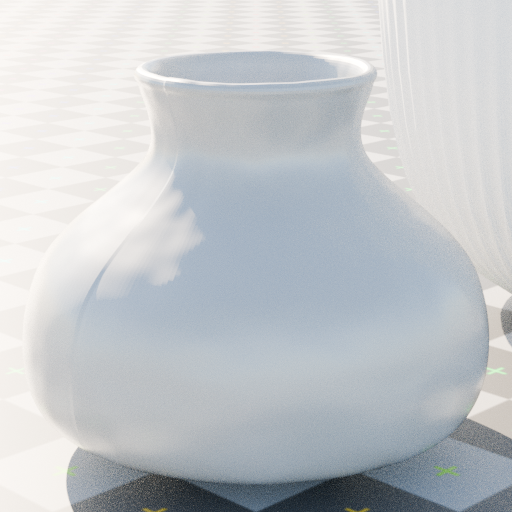

infinigen2 vase_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 vase_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

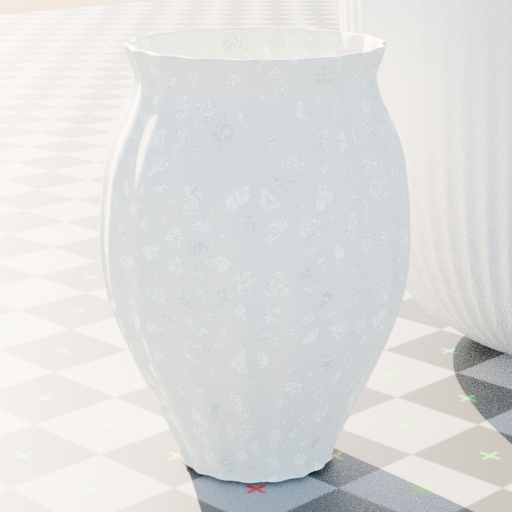

infinigen2 vase_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 vase_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

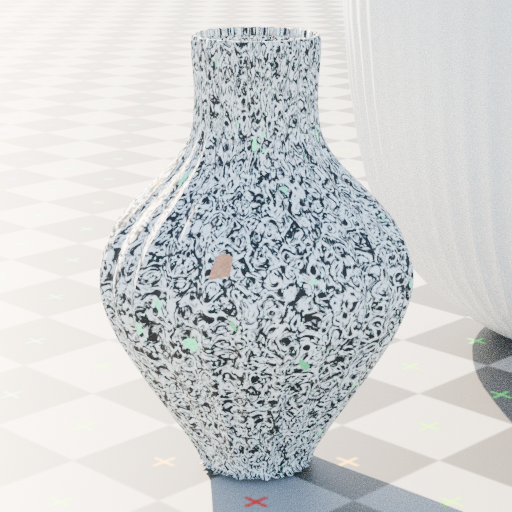

infinigen2 vase_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

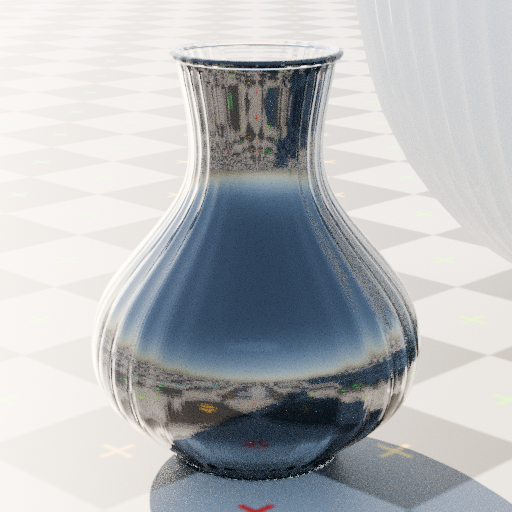

infinigen2 vase_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

rng (Generator)

wall_art

class infinigen2.objects.wall_art.WallArtResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

infinigen2.objects.wall_art.art_frame(...) → pf.ProcNode

Parameters:

• dimensions (pf.ProcNode[pf.Vector] | pf.Vector)

• frame_width (pf.ProcNode[float] | float)

• frame_material (pf.ProcNode[pf.Material] | pf.Material)

• panel_material (pf.ProcNode[pf.Material] | pf.Material)

• panel_depth_pct (pf.ProcNode[float] | float)

infinigen2.objects.wall_art.art_frame_swept(...) → pf.ProcNode

Like art_frame, but sweeps a moulding profile around the border centerline.

frame_profile follows the trim convention (symmetric about y=0 with height matching frame_width, relief in -X); with the centerline normal set to -Z the relief protrudes out the panel front.

Parameters:

• dimensions (pf.ProcNode[pf.Vector] | pf.Vector)

• frame_width (pf.ProcNode[float] | float)

• frame_material (pf.ProcNode[pf.Material] | pf.Material)

• panel_material (pf.ProcNode[pf.Material] | pf.Material)

• panel_depth_pct (pf.ProcNode[float] | float)

• frame_profile (pf.ProcNode[CurveObject])

infinigen2.objects.wall_art.mirror_rand(rng, dimensions=None) → WallArtResult

Example renders

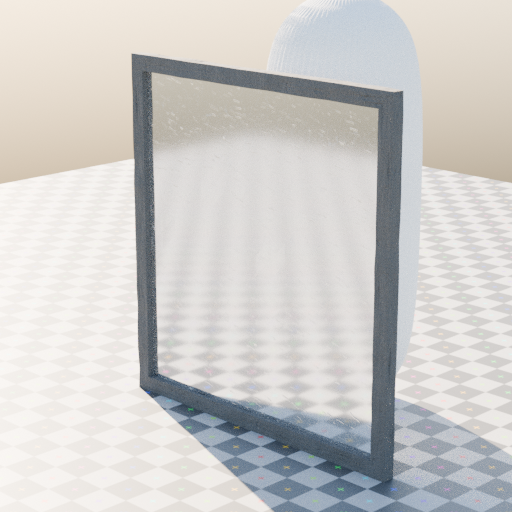

infinigen2 mirror_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 mirror_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

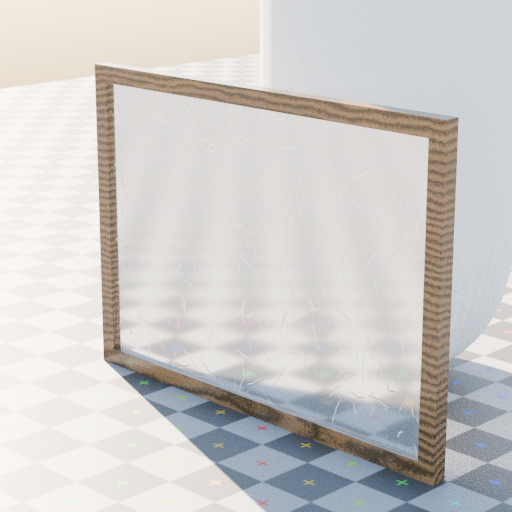

infinigen2 mirror_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

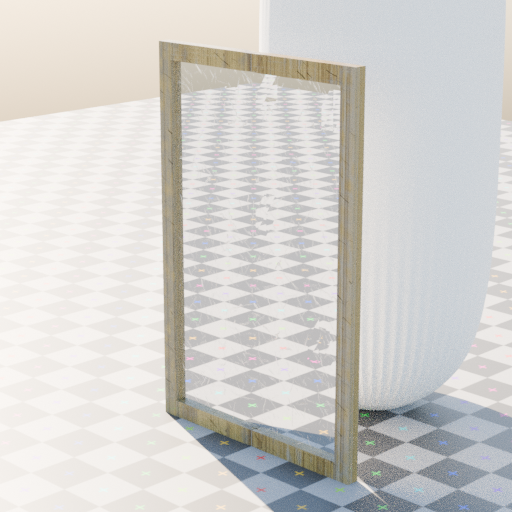

infinigen2 mirror_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 mirror_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

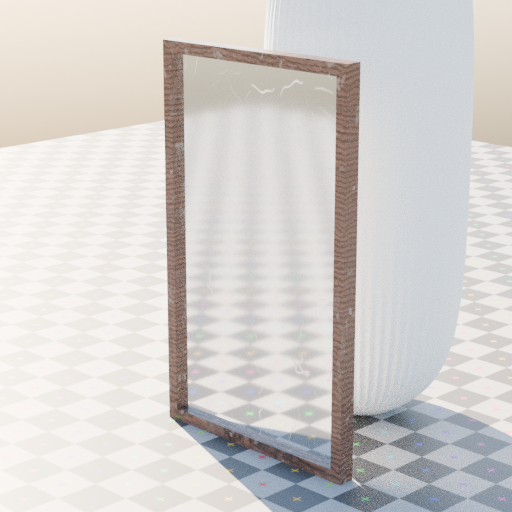

infinigen2 mirror_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

infinigen2.objects.wall_art.mirror_surface_material_rand(rng, vector) → pf.Material

Parameters:

• rng (Generator)

• vector (pf.ProcNode[pf.Vector] | pf.Vector)

infinigen2.objects.wall_art.wall_art_rand(...) → WallArtResult

Example renders

infinigen2 wall_art_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 wall_art_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 wall_art_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 wall_art_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 wall_art_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 wall_art_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• panel_material (pf.Material | None) -- (default: None)

• frame_material (pf.Material | None) -- (default: None)

window

class infinigen2.objects.window.CurtainResult(mesh)

Bases: NamedTuple

mesh: pf.MeshObject

class infinigen2.objects.window.WindowResult(mesh, light)

Bases: NamedTuple

mesh: pf.MeshObject

light: LightObject

infinigen2.objects.window.curtain(...) → CurtainResult

Parameters:

• width (float) -- (default: 2.5)

• depth (float) -- (default: 0.049)

• height (float) -- (default: 2.5)

• interval_number (float) -- (default: 22)

• radius (float) -- (default: 0.015)

• l1 (float) -- (default: -1.25)

• r1 (float) -- (default: -0.4375)

• l2 (float) -- (default: 0.4375)

• r2 (float) -- (default: 1.25)

• frame_depth (float) -- (default: -0.075)

• curtain_frame_material (pf.Material | None) -- (default: None)

• curtain_material (pf.Material | None) -- (default: None)

infinigen2.objects.window.curtain_rand(...) → CurtainResult

Example renders

infinigen2 curtain_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 curtain_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 curtain_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 curtain_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 curtain_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 curtain_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• material (pf.Material | None) -- (default: None)

• rail_material (pf.Material | None) -- (default: None)

infinigen2.objects.window.window(...) → WindowResult

Parameters:

• dimensions (pf.Vector | None) -- (default: None)

• frame_width (float) -- (default: 0.035)

• panel_h_amount (int) -- (default: 2)

• panel_v_amount (int) -- (default: 2)

• sub_frame_width (float) -- (default: 0.0225)

• sub_frame_thickness (float) -- (default: 0.0525)

• sub_panel_h_amount (int) -- (default: 1)

• sub_panel_v_amount (int) -- (default: 1)

• shutter (bool) -- (default: False)

• shutter_panel_radius (float) -- (default: 0.002)

• shutter_width (float) -- (default: 0.04)

• shutter_thickness (float) -- (default: 0.005)

• shutter_rotation (float) -- (default: 0.707)

• shutter_interval (float) -- (default: 0.0424)

• frame_material (pf.Material | None) -- (default: None)

• glass_material (pf.Material | None) -- (default: None)

• include_glass_pane (bool) -- (default: True)

infinigen2.objects.window.window_dimensions_rand(rng, width=None, height=None) → pf.Vector

Parameters:

• rng (Generator)

• width (float | None) -- (default: None)

• height (float | None) -- (default: None)

infinigen2.objects.window.window_rand(...) → WindowResult

Example renders

infinigen2 window_rand object_demo render_cycles --seed 0 --passes rgb -r 512 512 -s 128 📋

infinigen2 window_rand object_demo render_cycles --seed 1 --passes rgb -r 512 512 -s 128 📋

infinigen2 window_rand object_demo render_cycles --seed 2 --passes rgb -r 512 512 -s 128 📋

infinigen2 window_rand object_demo render_cycles --seed 3 --passes rgb -r 512 512 -s 128 📋

infinigen2 window_rand object_demo render_cycles --seed 4 --passes rgb -r 512 512 -s 128 📋

infinigen2 window_rand object_demo render_cycles --seed 5 --passes rgb -r 512 512 -s 128 📋

Parameters:

• rng (Generator)

• dimensions (pf.Vector | None) -- (default: None)

• frame_material (pf.Material | None) -- (default: None)

• glass_material (pf.Material | None) -- (default: None)

• curtain (pf.MeshObject | None) -- (default: None)

• include_glass_pane (bool) -- (default: True)

Module contents
